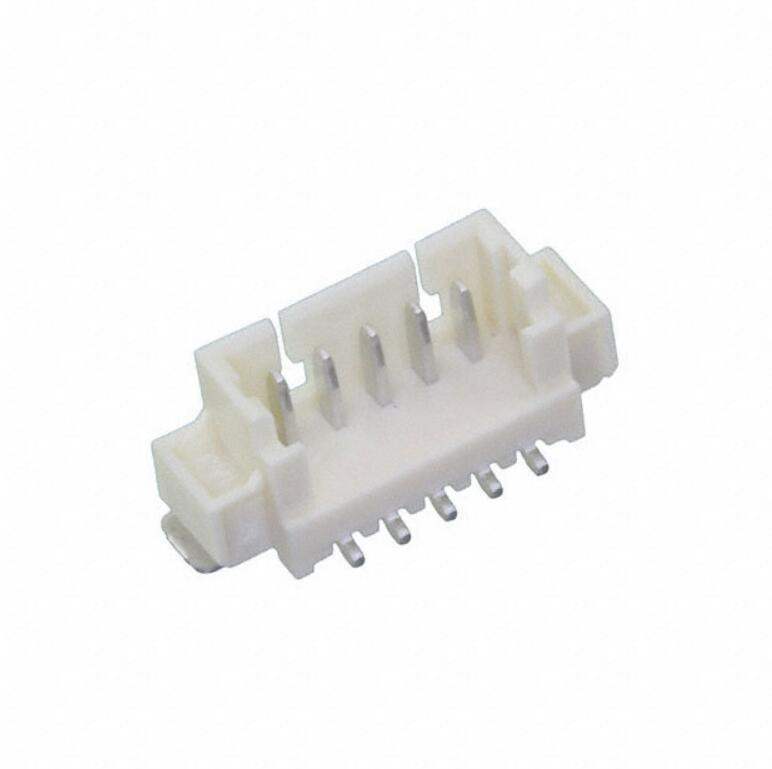

0533980571Molex
Same model may have multiple batches, images only for reference.

0533980571

Part No 0533980571
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201309-0533980571
Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series PicoBlade 53398
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 0533980571 CAD Model

Description

The PicoBlade 53398 series header connector is a reliable and compact electronic component manufactured by Molex.

  • Category: Headers and Male Pins
  • Connector Type: Header
  • Contact Type: Male Blade
  • Pitch for Mating: 0.049" (1.25mm)
  • Packaging: Tape & Reel, Cut Tape, Digi-Reel
  • Status: Active
