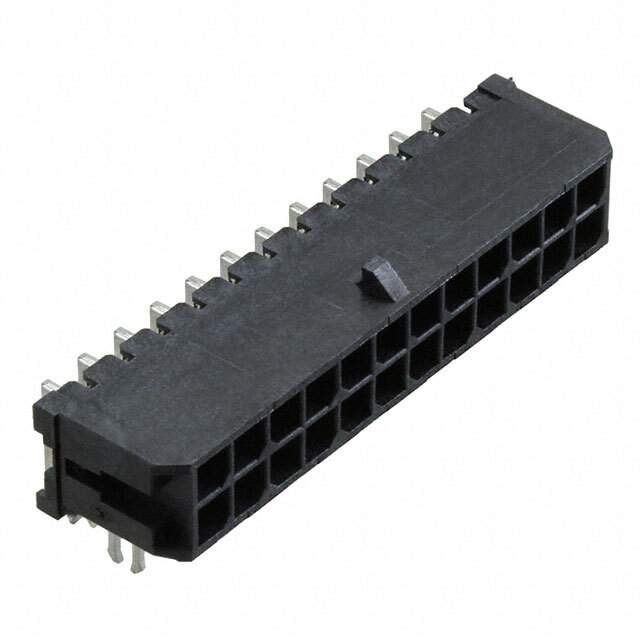

430452421

Part No 430452421
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description MICROFIT 3.0 RA PTH W/CLIP DR
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 24
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 197047-430452421
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 430452421 CAD Model

Description

Product Description: 430452421

The 430452421 is tailored for applications requiring high efficiency and robustness. Packed with cutting-edge technology, it thrives in challenging settings, delivering outstanding performance consistently.

Applications and Projects

  • Renewable energy systems
  • Advanced computing hardware
  • Automated testing equipment
  • Data acquisition systems

Features and Benefits

  • Superior thermal management
  • Advanced power regulation
  • High reliability and durability
  • Support for high-speed data processing

Opt for the 430452421 where precision and capability are paramount, ensuring your systems operate at peak efficiency.
