Same model may have multiple batches, images only for reference.

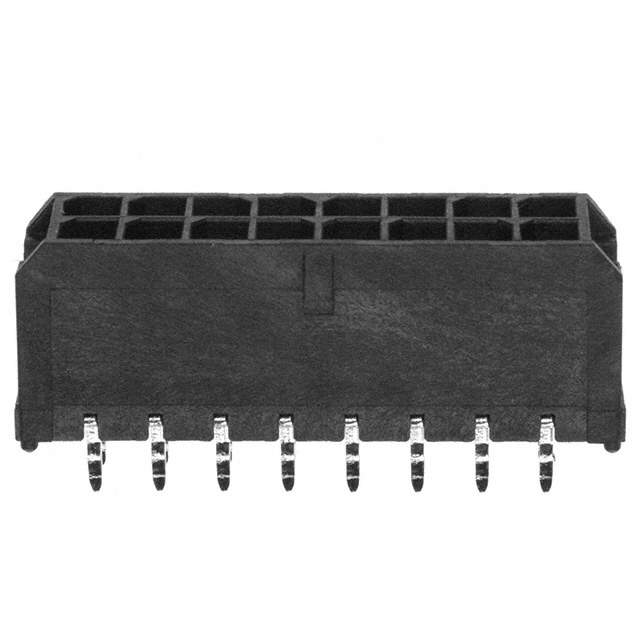

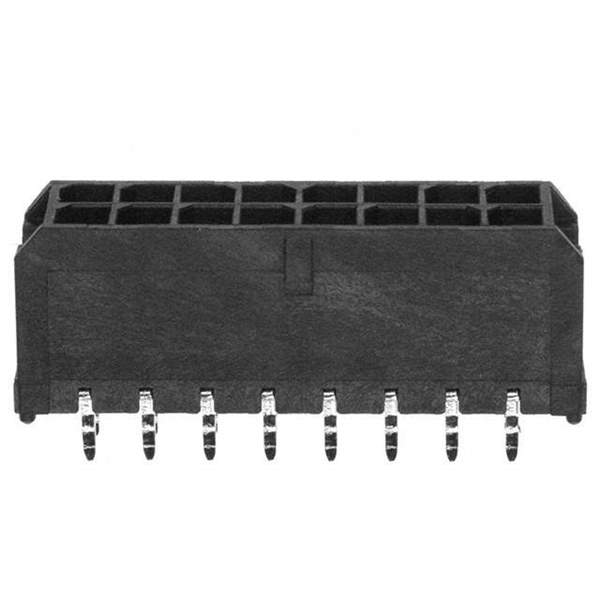

0430451612 Real Image
Same model may have multiple batches, images only for reference.

0430451612

Part No 0430451612
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 3MM / Connector Header Through Hole 16 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043045
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4712,430451612,43045-1612,WM4712-NDR,43045-1612-TR66
Standard Package 792
Win Source Part Number 1332462-0430451612
Ultra Librarian 3D Model Ultra Librarian 0430451612 CAD Model

Description

The Molex header male pin connector has 16 positions with a pitch of 0.118" (3.00mm).

  • Number of Positions: 16
  • Pitch: 0.118" (3.00mm)
  • Type: Shrouded
  • Fastening Type: Locking Ramp
  • Mounting: Through Hole
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Contact Termination: Kinked Pin, Solder
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
