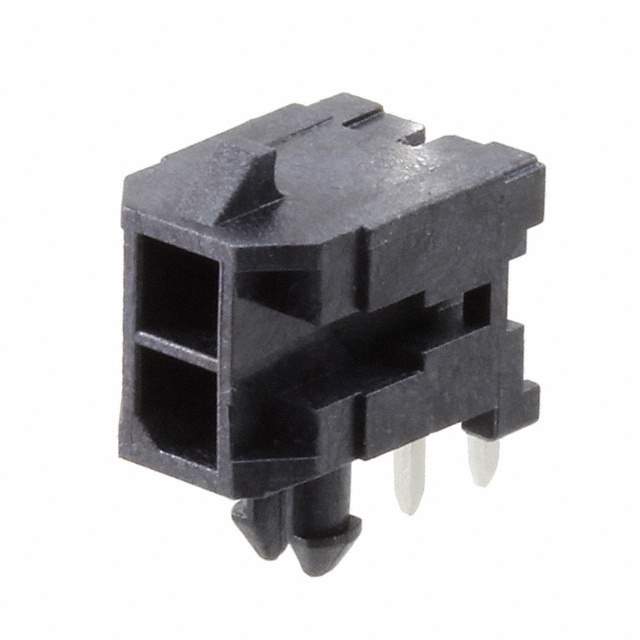

Same model may have multiple batches, images only for reference.

0430450201

Name: 0430450201
Brand: Molex, LLC
SKU: 1332581
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0430450201
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS / Connector Header Through Hole, Right Angle 2 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.125" (3.18mm)
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	8A
Voltage Rating	600V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Medical, Military, Telecommunications
Base Product Number	043045
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	043045-0201,WM9815,43045-0201,0430-45-0201,0430450201-ND,430450201
Standard Package	3,168
Win Source Part Number	1332581-0430450201
Ultra Librarian 3D Model	Ultra Librarian 0430450201 CAD Model

Alternative Products

Description

The Molex 1332581-0430450201 is a high-quality connector that is designed to provide reliable performance in a wide range of electronic applications.

Voltage Rating: 600V
Current Rating: 8A
Shrouding: Shrouded - 4 Wall
Mounting: Through Hole, Right Angle
Temperature Range: -40°C to 105°C
Supply and Demand: Balanced
Standard Package: 3,168
