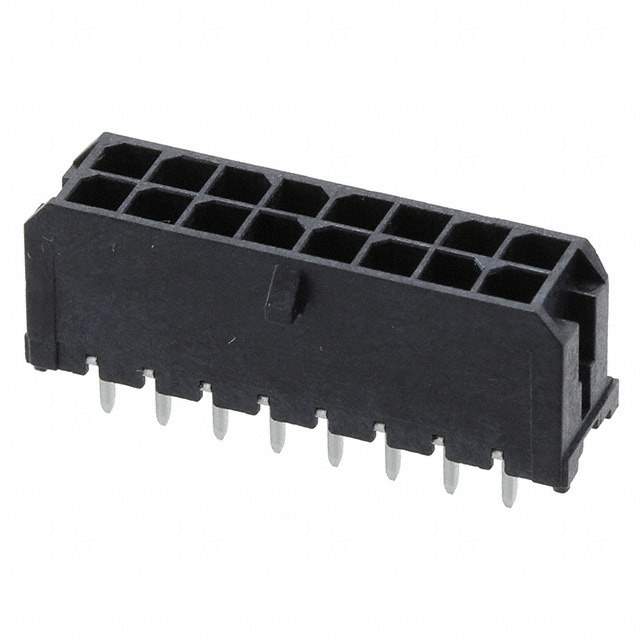

43045-1628 Real Image
Same model may have multiple batches, images only for reference.

43045-1628

Part No 43045-1628
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, pcb Mount, recept, 16 Contacts, pin, 0.118 Pitch, pc Tail Terminal, polarized Lck
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Gold
Country of Origin US
Current Rating 5 A
Glow Wire Compliant Compliant
Halogen Free Low Halogen
Housing Material Thermoplastic
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 16
Number of Contacts 16
Number of Positions 16
Number of Rows 2
Orientation Vertical
Pitch 3 mm
Plating Tin
RoHS Compliant
Row Spacing 3 mm
Schedule B 8536694040
Termination Through Hole
Voltage Rating 250 V
Win Source Part Number 1018434-43045-1628
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43045-1628 CAD Model

Description

The Molex power rectangular connector is a male connector with through-hole termination and thermoplastic housing material.

  • Voltage Rating: 250 V
  • Current Rating: 5 A
  • Connector Type: Male pin, power, rectangular
  • Rows: Two
  • Positions: 16
  • Row Spacing: 3 mm
  • Pitch: 3 mm
  • Contact Plating: Gold
  • Plating: Tin
  • RoHS Compliant: Yes
  • Glow Wire Compliant Rating: Yes
  • Used In: Circular connectors - housings
  • Alternative Parts: 43045-1413, 43045-1602, 43045-1426, 5-146497-8, 146261-8, 104432-80430451628, and 430451628
