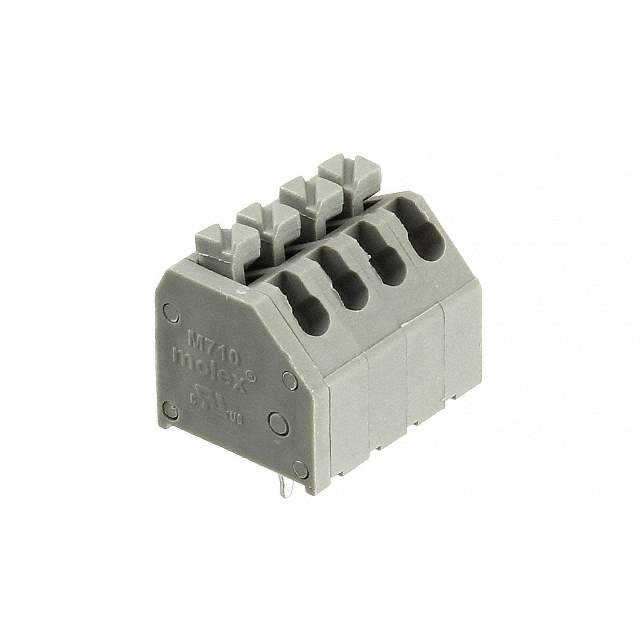

39700-0704 Real Image
Same model may have multiple batches, images only for reference.

39700-0704

Part No 39700-0704
Manufacturer Molex, LLC
Catalog Terminal Blocks
Description Terminal Block Connector, Euro, Push-Button, 45 Deg, 5A, 20-16 AWG, 3.50mm, 4 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0704
Contact Material Bronze
Contact Plating Tin
Country of Origin US
Current Rating 6 A
Depth 12 mm
Halogen Free Low Halogen
Housing Material Polyamide
Length 15.5 mm
Maximum Operating Temperature 105 °C
Max Supply Voltage 300 V
Min Operating Temperature -40 °C
Number of Circuits 2
Number of Contacts 4
Number of Positions 2
Number of Rows 1
Packaging Bulk
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 300 V
Wire/Cable Gauge 20 AWG
Win Source Part Number 999920-39700-0704
Categories Terminal Blocks
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39700-0704 CAD Model

Description

The 999920-39700-0704 is a terminal block that has 2 positions and 1 row.

  • Material: Polyamide
  • Length: 15.5mm
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Voltage Rating: 300V
  • Current Rating: 6A
  • Package Type: 0704
  • Mounting: SMD (SMT) technology
  • Manufacturer: Molex, LLC
  • Number of Contacts: 4
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 105°C
