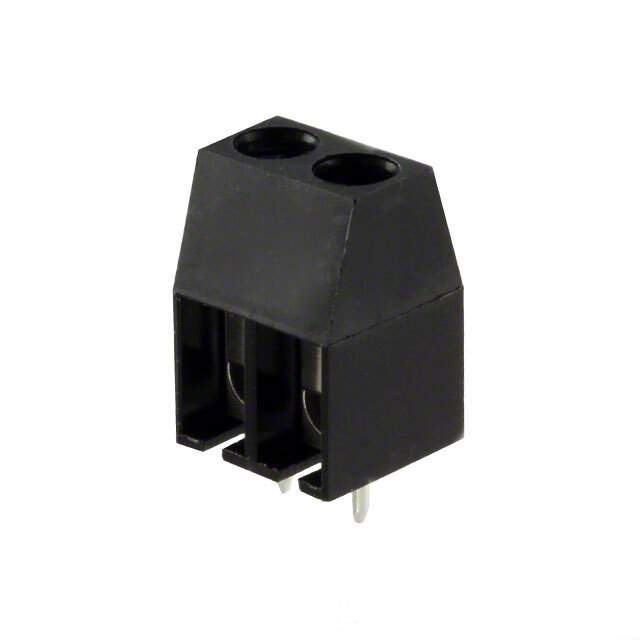

39543-0002 Real Image
Same model may have multiple batches, images only for reference.

39543-0002

Part No 39543-0002
Manufacturer Molex, LLC
Catalog Terminal Blocks
Description 5mm Pitch Eurostyle Vertical Fixed Mount PCB Terminal Block, 2 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 15 A
ELV Compliant
Halogen Free Low Halogen
Height 14.5 mm
Length 10 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 2
Orientation Vertical
Packaging Bulk
Pitch 5 mm
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 300 V
Width 9.5 mm
Wire/Cable Gauge 24 AWG
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1215178-39543-0002
Categories Terminal Blocks
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 39543-0002 CAD Model

Description

The Molex Electronic Component is a medium-popularity terminal block product that is ideal for various applications. The product has a RoHS compliance and is low halogen-free.

  • RoHS Compliance: Yes
  • Low Halogen-Free: Yes
  • Voltage Rating: 300V
  • Current Rating: 15A
  • Pitch: 5mm
  • Number of Positions: 2
  • Contact Plating: Tin
  • Housing Color: Black
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
