Same model may have multiple batches, images only for reference.

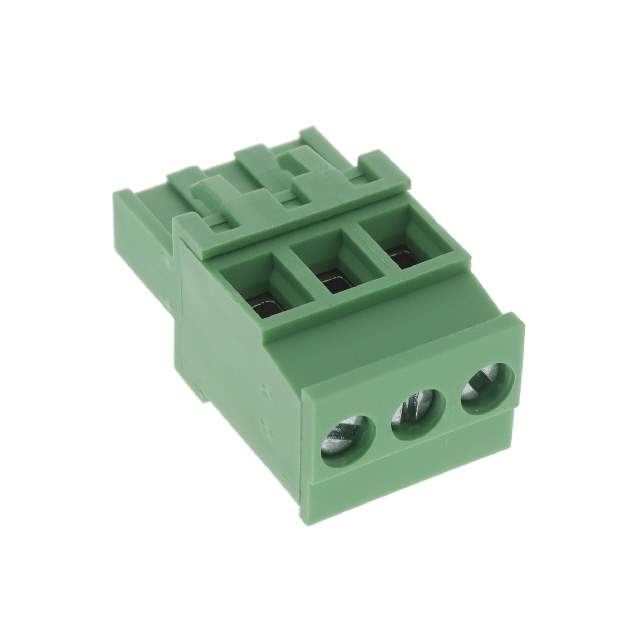

39533-8003 Real Image
Same model may have multiple batches, images only for reference.

39533-8003

Part No 39533-8003
Manufacturer Molex, LLC
Catalog Terminal Blocks
Description 5.08mm Pitch Eurostyle Vertical Plug, Front Wire Entry, Green Housing, 3 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Contact Material Bronze, Steel
Contact Plating Tin
Country of Origin US
Current 15 A
Depth 12.7 mm
Housing Color Green
Housing Material Polyamide
Length 15.24 mm
Maximum Operating Temperature 105 °C
Max Supply Voltage 300 V
Min Operating Temperature -40 °C
Mount Cable, Free Hanging
Number of Circuits 3
Number of Contacts 3
Number of Levels 1
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Vertical
Packaging Bulk
Pitch 5.08 mm
RoHS Compliant
Termination Screw
Voltage 300 V
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 972633-39533-8003
Categories Terminal Blocks
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39533-8003 CAD Model

Description

The Molex, LLC screw termination block has 3 positions and 3 circuits.

  • Pitch: 5.08 mm
  • Housing Material: Polyamide
  • Category: Terminal Blocks
  • RoHS Compliant: Yes
  • Voltage: 300 V
  • Current: 15 A
  • Temperature Range: -40 °C to 105 °C
  • Wire Gauge: 12-26 AWG
