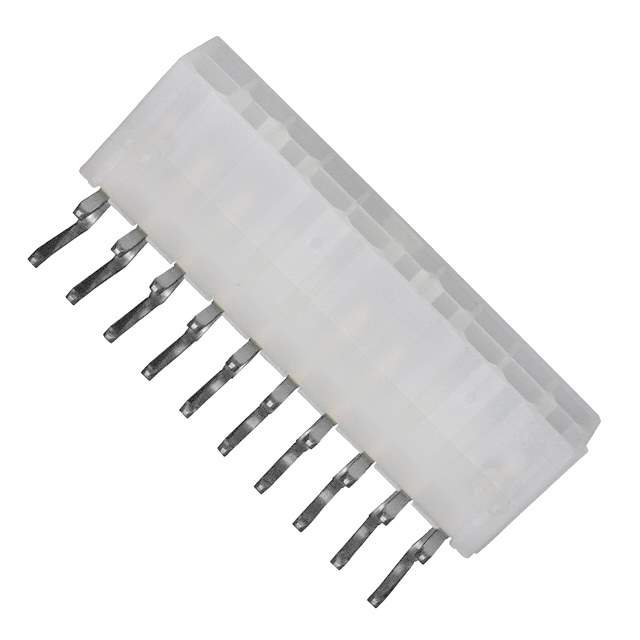

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003930
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM1372-NDR,39-30-1201,WM1372-ND,39301201,WM1372,23-0039301201,5569-20A2G,39-30-1201-P
Standard Package 1
Win Source Part Number 1332440-0039301201
Ultra Librarian 3D Model Ultra Librarian 0039301201 CAD Model

Description

The Molex connector is a high-quality rectangular connector that is perfect for various applications.

  • Manufacturer: Molex
  • Win Source Part Number: 1332440-0039301201
  • Number of Positions: 20
  • Board Lock: Yes
  • Connector Type: Header
  • Contact Type: Male Pin
  • Rows: 2
  • Termination: Solder
  • Contact Material: Brass
  • Contact Finish: Gold
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Shrouding: Shrouded - 4 Wall
  • Pitch-Mating: 0.165 inches (4.20mm)
  • RoHS3 Compliant: Yes
