Products specifications

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4031INACTIVE,39-29-9122,WM7329,39299122,WM4031,WM4031-ND,5566-12B2
Standard Package 2,400
Win Source Part Number 1332590-0039299122
Ultra Librarian 3D Model Ultra Librarian 0039299122 CAD Model

Description

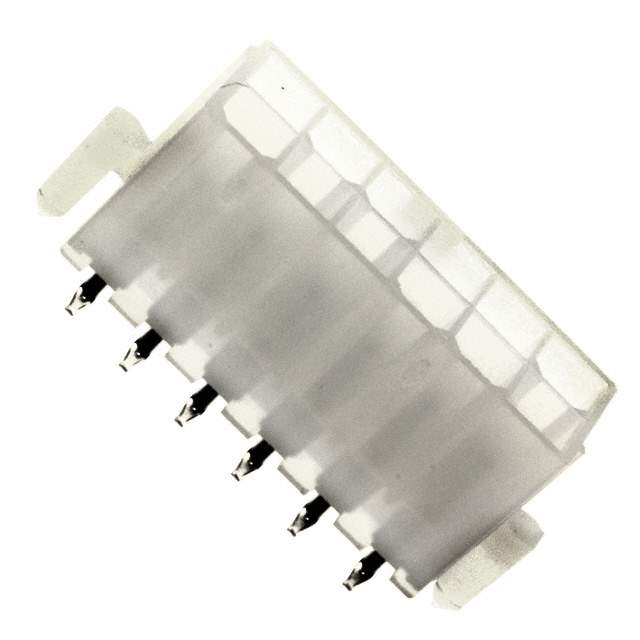

The Molex 1332590-0039299122 is a header connector with a locking ramp fastening type and a solder termination.

  • Pitch: 0.165" (4.20mm)
  • Number of Positions: 12
  • Number of Rows: 2
  • Housing Material: polyamide (PA66), nylon 6/6
  • Insulation Color: natural
  • RoHS3 Compliant: Yes
  • Mounting Style: through hole
  • Suitable for: general purpose, industrial, and telecommunications applications
