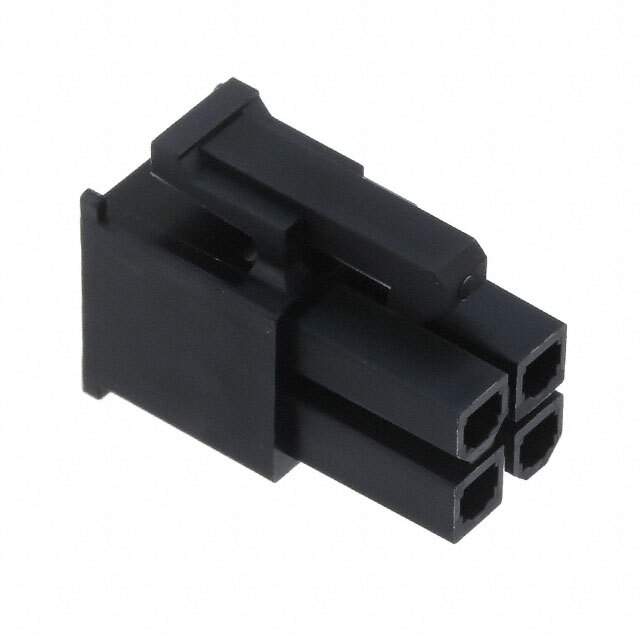

The Molex 39013045 is a 4-circuit connector housing designed for use with Mini-Fit Jr. series connectors. It is used in wire-to-wire and wire-to-board applications for reliable power and signal connections.

Applications:

• Power supplies
• Consumer electronics
• Industrial controls
• Automotive wiring harnesses
• Telecommunications equipment

Features:

• Mini-Fit Jr. Series
• 4 Circuits
• Single Row
• Plug Housing
• Positive locking mechanism for secure connections

Benefits:

• Ensures a reliable and secure electrical connection
• Prevents accidental disconnections with its positive locking feature
• Durable construction for long-lasting performance
• Easy to assemble with compatible Mini-Fit Jr. crimp terminals
• Versatile for a wide range of applications requiring power or signal transmission

Technical Specifications:

• Series: Mini-Fit Jr.
• Number of Circuits: 4
• Number of Rows: 1
• Gender: Male (Plug)
• Pitch: 4.2mm (0.165")
• Material: Nylon (PA) or Polyester (PBT)
• Color: Typically Natural (Off-White)
• Flammability Rating: UL 94V-0
• Operating Temperature: -40°C to +105°C

The Molex 39013045 provides a robust and reliable connection for various applications requiring a 4-circuit connector. Its design allows for easy assembly and secure mating with compatible Mini-Fit Jr. receptacles, ensuring stable performance in demanding environments.
