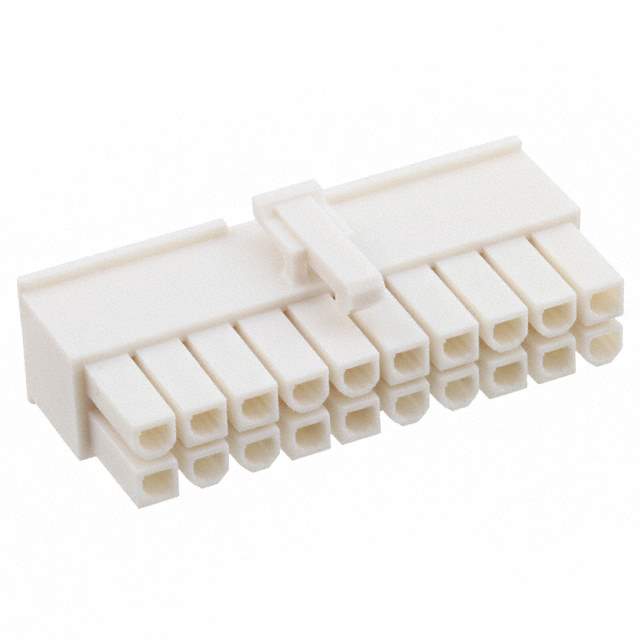

0039012205 Real Image
Same model may have multiple batches, images only for reference.

0039012205

Part No 0039012205
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 4.20MM / 20 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.165" (4.20mm)
Number of Rows 2
Row Spacing 0.165" (4.20mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 003901
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number WM23709,39012205-E,0039012205-E,0039-01-2205,39-01-2205,39-01-2205-E,5557-20R-210,0039-01-2205-E,39012205
Standard Package 200
Win Source Part Number 1332368-0039012205
Ultra Librarian 3D Model Ultra Librarian 0039012205 CAD Model

Description

The Molex 1332368-0039012205 is a rectangular connector housing designed for use with female socket contacts.

  • Contact Gender: Female
  • Fastening Type: Latch lock
  • Positions: 20
  • Rows: 2
  • Pitch: 0.165 inches (4.20mm)
  • Row Spacing: 0.165 inches (4.20mm)
  • Color: Natural
  • Mounting: Free hanging (in-line)
  • Contacts Included: No
  • Standard Package: 200 units
  • ROHS3 Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99
