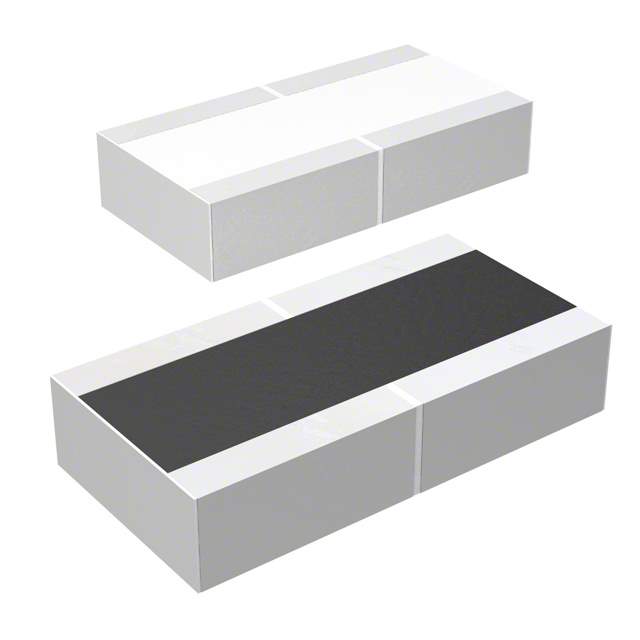

ERJ-B2AF222V Real Image
Same model may have multiple batches, images only for reference.

ERJ-B2AF222V

Part No ERJ-B2AF222V
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description Res Thick Film 0612 2.2K Ohm 1% 3/4W ±100ppm/°C Molded SMD Punched Carrier T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 1206
Composition Thick Film
Contact Plating Tin
Depth 1.6 mm
Height 650 µm
Length 3.2 mm
Maximum Operating Temperature 155 °C
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Power Rating 750 mW
Radiation Hardening No
REACH SVHC Yes
Resistance 2.2 kΩ
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 1 %
Voltage Rating 200 V
Voltage Rating (DC) 200 V
Width 3.2 mm
Win Source Part Number 1057684-ERJ-B2AF222V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERJ-B2AF222V CAD Model

Description

It is a manufacturer part number with a packaging of cut tape.

  • Voltage Rating: 200 V
  • Power Rating: 750 mW
  • Composition: Thick film
  • Case/Package: 1206
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
