Same model may have multiple batches, images only for reference.

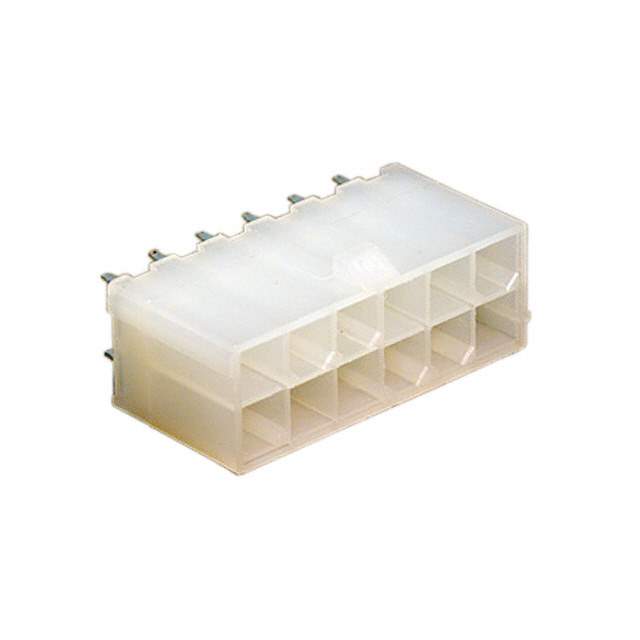

39-28-1123

Name: 39-28-1123
Brand: Molex, LLC
SKU: 1038355
Availability: InStock
Rating: 4.85 (73 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	39-28-1123
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Wire to Board HDR 12 POS 4.14mm Solder ST Top Entry Thru-Hole Automotive Bag
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, TUV, UL
Color	Clear, Natural
Connector Type	Power, Rectangular
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Country of Origin	US
Current Rating	7 A
Depth	11.93 mm
Flammability Rating	UL94 V-2
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	6.04 mm
Housing Color	Black
Housing Material	Nylon
Insulation Resistance	1 GΩ
Lead Free	Yes
Lead Pitch	4.2 mm
Length	26.8 mm
Max Current Rating	3 A
Maximum Operating Temperature	105 °C
Max Voltage Rating (DC)	600.6 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	12
Number of Contacts	12
Number of Lines	2
Number of Pins	12
Number of Poles	12
Number of Positions	12
Number of Rows	2
Orientation	Vertical
Packaging	Bulk
Pitch	4.2 mm
Plating	Tin
Radiation Hardening	No
RoHS	Compliant
Row Spacing	5.5 mm
Shape	Straight
Termination	Solder
Test Voltage	1.5 kV
Voltage Rating	600 V
Voltage Rating (AC)	600 V
Voltage Rating (DC)	600 V
Width	11 mm
Working Voltage	250 V
Win Source Part Number	1038355-39-28-1123
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 39-28-1123 CAD Model

Alternative Products

Description

The Molex power rectangular connector is a male connector with solder termination and nylon housing material.

Voltage Rating: 600 V
Current Rating: 7 A
Connector Type: Power, Rectangular
Positions: 12
Rows: Two
Row Spacing: 5.5 mm
Pitch: 4.2 mm
Color: Clear and natural
Housing Color: Black
Approvals: CSA, TUV, and UL
Halogen: Low
Used in: Circular connectors - housings
Alternative Parts: 770621-1, 1-1586585-2, 39-28-8120, 39-29-9122, 39-29-9127, 1-794066-0, 1-770621-0, 39-00-0039, 39-28-1063, 172330-1, 282109-1, 1586315-10-03928112-3, 0039281123, 039281123, 39-28-1123., 39/28/1123, 3928-1123, and 39281123
