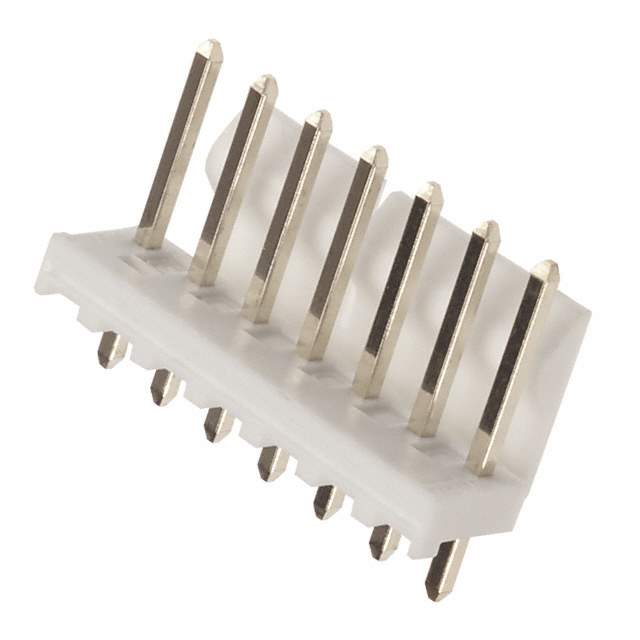

26-60-4070

Part No 26-60-4070
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 7POS .156 VERT TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.720" (18.29mm)
Insulation Height 0.446" (11.33mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60μin (1.52μm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 052736-26-60-4070
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26-60-4070 CAD Model

Description

Product Description: 26-60-4070

The 26-60-4070 is an essential component known for its efficiency and versatility in a wide array of electronic systems, offering reliable connections every time.

  • Features and Benefits:
    • High efficiency design
    • Versatile application use
    • Reliable performance
    • Economical solution
  • Applications/Projects:
    • Data communication projects
    • Broadcasting equipment
    • Computing technologies
    • Security systems
  • Additional Details: Created with modern electronic needs in mind, the 26-60-4070 is a trusted solution that delivers consistent performance and ease of use.
