Same model may have multiple batches, images only for reference.

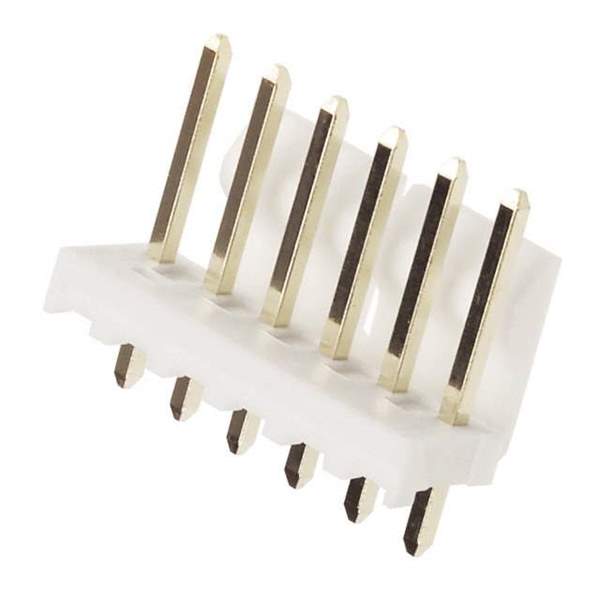

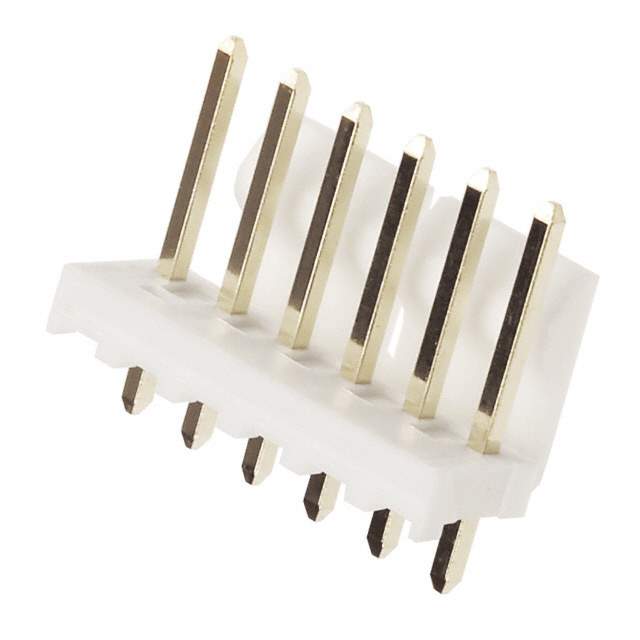

26-60-4060 Real Image
Same model may have multiple batches, images only for reference.

26-60-4060

Part No 26-60-4060
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass, Tin
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 7 A
Depth 10.01 mm
Flammability Rating UL94 V-0
Gender Male
Height 14.73 mm
Housing Color Natural
Housing Material Polyester
Insulation Resistance 50 GΩ
Lead Free Yes
Lead Pitch 3.96 mm
Length 23.62 mm
Material Polyester
Max Current Rating 7 A
Maximum Operating Temperature 75 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 6
Number of Lines 1
Number of Pins 6
Number of Poles 6
Number of Positions 6
Number of Rows 1
Orientation Vertical
Packaging Bulk
Pitch 3.96 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1036210-26-60-4060
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 26-60-4060 CAD Model

Description

The Molex 1036210-26-60-4060 is a circular connector housing that has 6 positions and a pitch of 3.96mm.

  • Positions: 6
  • Pitch: 3.96mm
  • Orientation: Vertical
  • Contact Gender: Male
  • Contact Material: Brass
  • Contact Plating: Tin
  • Voltage Rating: 250V
  • Current Rating: 7A
  • Housing Material: Polyester
  • Color: Natural
  • RoHS Compliant: Yes
  • Lead-Free: Yes
