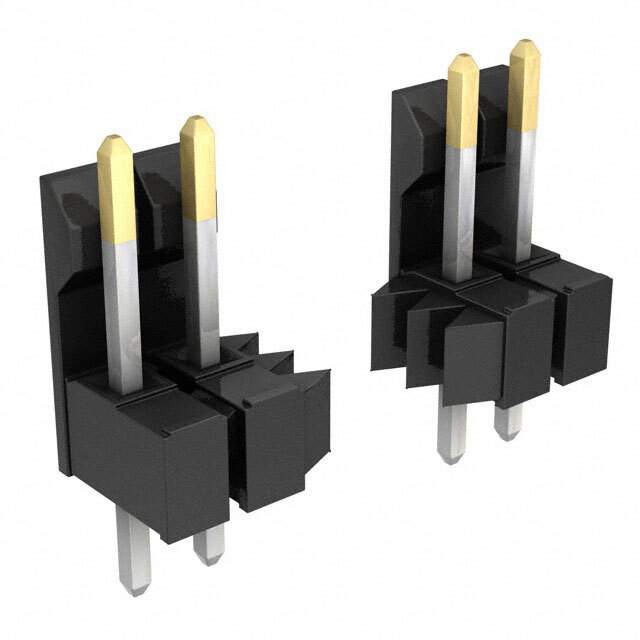

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series KK 42227
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Number of Positions 23
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.540" (13.72mm)
Insulation Height 0.337" (8.56mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 762051-22280232
Popularity Medium
Supply and Demand Status Limited
Family Name 42227
Introduction Date June 15, 2010
ECCN EAR99
Country of Origin Mexico, United States of America, United States of America, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 22280232 CAD Model

Description

This electronic component is a header connector manufactured by Molex, LLC.

  • Win Source Part Number: 762051-22280232
  • Series: KK 42227
  • Packaging: Bulk
  • Positions: 23
  • Mounting Type: Through hole
  • Connector Type: Breakaway
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: Single
  • Applications: Automotive, general purpose, medical, telecommunications
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
