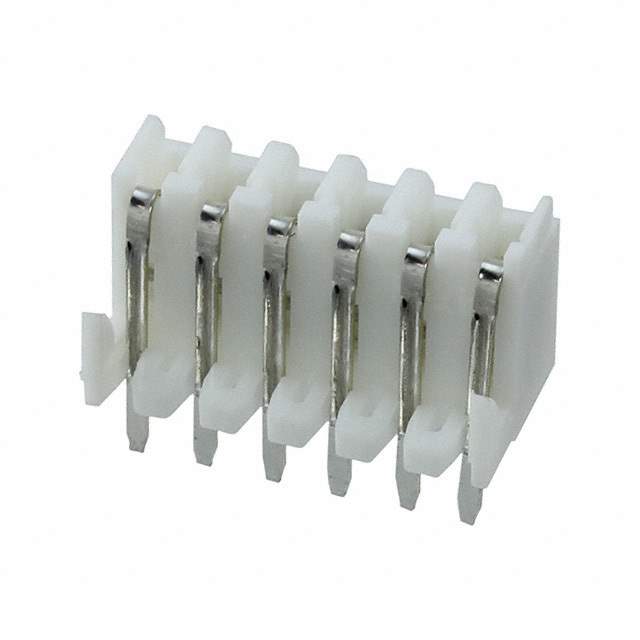

Same model may have multiple batches, images only for reference.

0022142064

Get a Quote

Part No	0022142064
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.1 TIN PCB / 6 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Molex
Packaging	Tray
Connector Type	Receptacle, Bottom Entry
Contact Type	Non-Gendered
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Insulation Color	White
Insulation Height	0.311" (7.90mm)
Contact Length - Post	0.132" (3.35mm)
Temperature Range - Operating	-40°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Hooks
Current Rating (Amps)	2.5A
Voltage Rating	250VAC
Applications	Automotive, General Purpose, Medical, Telecommunications
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	002214
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	22-14-2064,0022142064-P,22142064-P,WM3104,0022-14-2064,WM3104-NDR,A-4455-BH 06 D(P909),0022-14-2064-P,22-14-2064-P,22142064,A-4455-BH06D(P909)
Standard Package	1
Win Source Part Number	1333081-0022142064
Ultra Librarian 3D Model	Ultra Librarian 0022142064 CAD Model

Description

The Molex 1333081-0022142064 is a 6-position receptacle connector designed for use in a variety of applications, including automotive, medical, and telecommunications.

Board Hooks: Yes
Contact Material: Brass
Voltage: 250VAC
Current Rating: 2.5A
Pitch-Mating: 0.100 inches
Contact Finish-Mating: Tin with a thickness of 100.0µin
Insulation Material: Polyamide (PA), Nylon
Insulation Color: White
Mounting: Through Hole
Temperature Range: -40°C to 80°C
