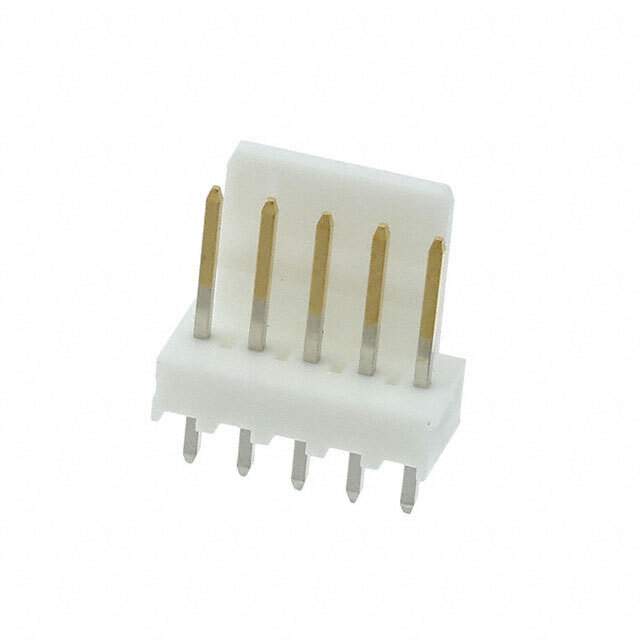

The Molex 22-29-2051 is a 5-circuit KK 254 series connector housing. It is designed for wire-to-board connections, offering a reliable and space-saving solution for various electronic applications. The KK 254 system is widely recognized for its versatility and ease of use.

Applications

• Consumer electronics
• Industrial controls
• Telecommunications equipment
• Medical devices
• Automotive applications

Features

• 5 circuits
• 2.54mm (0.1 inch) pitch
• KK 254 series compatibility
• Durable housing material (typically nylon or similar polymer)
• Polarization features to prevent mismating
• Accepts a wide range of wire gauges (typically 22-30 AWG)

Benefits

• Reliable wire-to-board connections
• Space-saving design
• Easy assembly and mating
• Prevents incorrect connections due to polarization
• Versatile application in various industries
• Cost-effective solution for connector needs

Technical Specifications

Series: KK 254

Number of Circuits: 5

Pitch: 2.54mm (0.1 inch)

Material: Typically Nylon or similar polymer

Flammability Rating: UL 94V-0 (typically)

Wire Gauge: 22-30 AWG (typical, check datasheet for specifics)

Operating Temperature: Varies depending on material (check datasheet for specifics)

Mating Parts: Compatible KK 254 series headers and terminals

The 22-29-2051 connector housing ensures secure and reliable connections in diverse electronic systems. Its compact design and user-friendly features make it a popular choice among design engineers.
