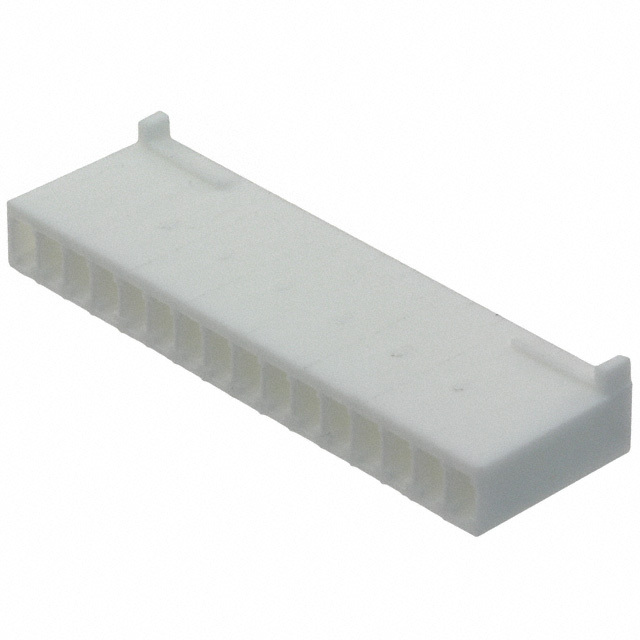

22-01-3167

Name: 22-01-3167
Brand: Molex, LLC
SKU: 540342
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	22-01-3167
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	2.54mm (.100) Pitch KK® Crimp Terminal Housing, Friction Ramp, 16 Circuits, Use with 2759\|6459\|41572 \| CONN HOUS 16POS .100 W/RAMP/RIB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Non-Gendered
Number of Positions	16
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
Color	White
Features	Polarizing Key
Note	Contacts Not Included
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1123030-22-01-3167
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 22-01-3167 CAD Model

Description

The Molex Receptacle Connector is a non-gendered contact type connector with 16 positions.

Mounting Style: Free Hanging (In-Line)
Features: Polarizing Key
Connector Type: Receptacle
Row Spacing: None
Fastening Type: Locking Ramp
Contact Termination: Crimp
Contacts Included: No
Pitch: 0.100" (2.54mm)
Color: White
Applications: Various
Contact Material: Not specified
Category: Uncategorized
Popularity: Medium
Supply and Demand: Limited
