Same model may have multiple batches, images only for reference.

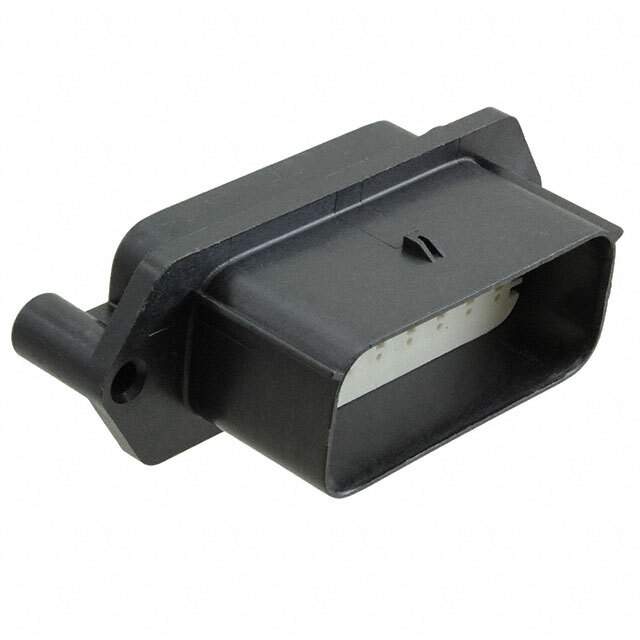

19429-0016 Real Image
Same model may have multiple batches, images only for reference.

19429-0016

Part No 19429-0016
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn Housing PL 16 POS 5.84mm Crimp ST Panel Mount Black MX150L™ Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin, Plug
Country of Origin US
Current Rating 18 A
Depth 39.66 mm
Fastening Type Ramp
Length 83.83 mm
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Panel
Number of Positions 16
Number of Rows 2
Orientation Straight
Pitch 5.84 mm
RoHS Compliant
Row Spacing 5.9944 mm
Termination Crimp
Win Source Part Number 1213554-19429-0016
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 19429-0016 CAD Model

Description

The 19429-0016 is a custom part with 16 positions and a pitch of 5.84mm manufactured by Molex, LLC.

  • Color: Black
  • Connector Type: Male Pin Plug
  • Rows: Two
  • Row Spacing: 5.9944mm
  • Termination: Crimp
  • Fastening Type: Ramp
  • Current Rating: 18A
  • Length: 83.83mm
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 125 °C
