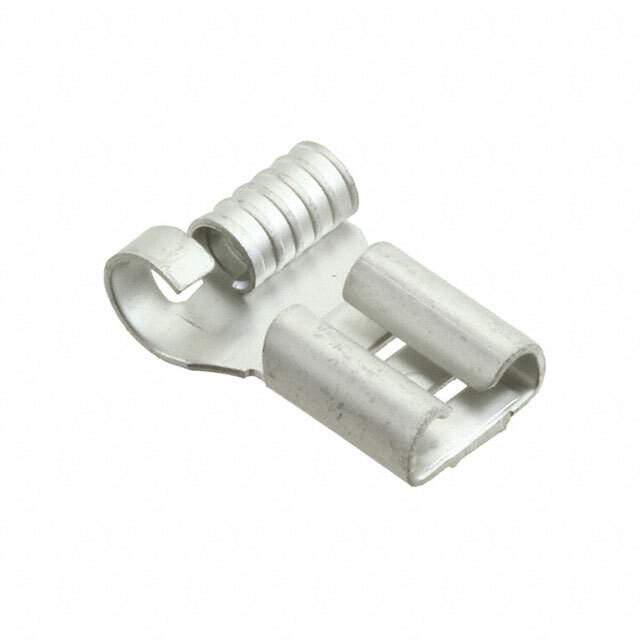

19009-0010 Real Image
Same model may have multiple batches, images only for reference.

19009-0010

Part No 19009-0010
Manufacturer Molex, LLC
Catalog Terminals
Description Quick Disconnect Terminal 14-16AWG Brass F 15.1mm Tin VibraKrimp™ Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Tin
Country of Origin US
ELV Compliant
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Insulation Non-Insulated
Insulation Diameter 3.68 mm
Material Brass
Packaging Box
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Wire/Cable Gauge 16 AWG
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1047700-19009-0010
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 19009-0010 CAD Model

Description

The Molex, LLC female terminal is a non-insulated, brass contact plating that uses tin plating.

  • Insulation: Non-Insulated
  • Contact Plating: Brass
  • Plating: Tin
  • Insulation Diameter: 3.68 mm
  • Material: Brass
  • Category: Terminals
  • Compliance: RoHS
  • Compliance: ELV
  • Feature: Low Halogen
  • Wire/Cable Gauge: 16 AWG
  • Maximum Wire Gauge: 14 AWG
