Same model may have multiple batches, images only for reference.

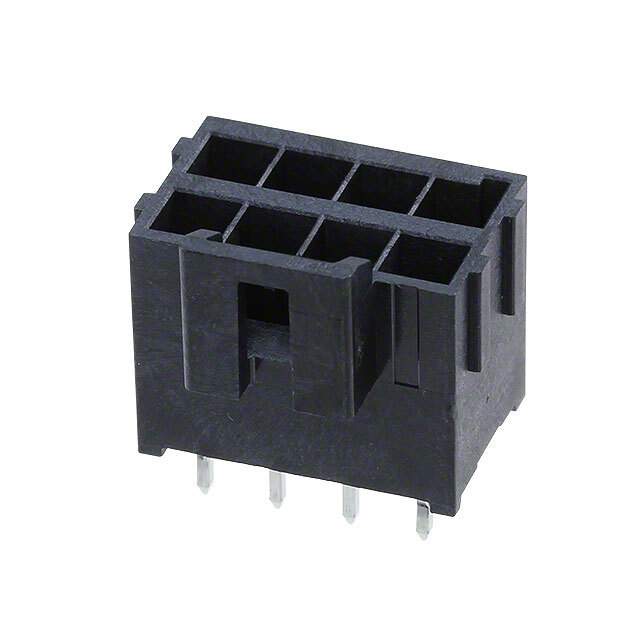

1722981108 Real Image
Same model may have multiple batches, images only for reference.

1722981108

Part No 1722981108
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3.5MM / Connector Header Through Hole 8 position 0.138" (3.50mm)
Datasheet
1722981108 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.181" (4.60mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 400V
Mated Stacking Heights 26.99mm
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172298
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM11582,172298-1108
Standard Package 900
Win Source Part Number 1332779-1722981108
Ultra Librarian 3D Model Ultra Librarian 1722981108 CAD Model

Description

The Molex 1332779-1722981108 is a through-hole header connector that is suitable for use in automotive, general purpose, industrial, lighting, medical, military, and telecommunications applications.

  • Positions: 8
  • Positions Loaded: All
  • Rows: Two
  • Pitch: 0.138 inches (3.50mm)
  • Contact Finish: Tin
  • Contact Finish Thickness (Mating & Post): 60.0µin (1.52µm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Design: Shrouded 4-Wall
  • Contact Shape: Square
  • Contact Length (Post): 0.126 inches (3.20mm)
  • Insulation Height: 0.465 inches (11.80mm)
  • Packaging: Tray
  • Fastening Type: Latch Holder
