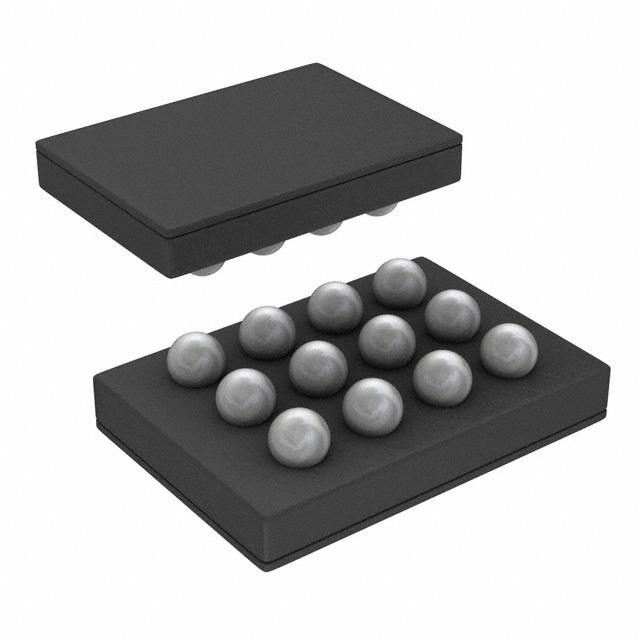

Same model may have multiple batches, images only for reference.
LM48860TLX Texas Instruments
Same model may have multiple batches, images only for reference.

LM48860TLX

Part No LM48860TLX
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO PWR .05W AB 12DSBGA
Datasheet
LM48860TLX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Class AB
Output Type Headphones, 2-Channel (Stereo)
Max Output Power x Channels @ Load 50mW x 2 @ 32 Ohm
Supply Voltage - Operating 2 V to 5.5 V
Features Depop, Shutdown, Thermal Protection
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 12-DSBGA
Dimension 12-WFBGA, DSBGA
Win Source Part Number 071459-LM48860TLX
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM48860TLX CAD Model

Description

The LM48860TLX from Texas Instruments is a highly sophisticated, top-tier audio amplifier designed to deliver exceptional audio performance.

  • Type: Mono, filter-less, Class-D audio amplifier
  • Power Supply: Ranging from 2.7V to 5.5V
  • Feature: Filter-less modulation scheme
  • Mode: Shutdown mode for reduced power consumption
  • Input Structure: Single-ended inputs, differential inputs, or a combination of both
  • Feature: Built-in pop and click suppression mechanism
  • Package: 9-bump micro SMD
