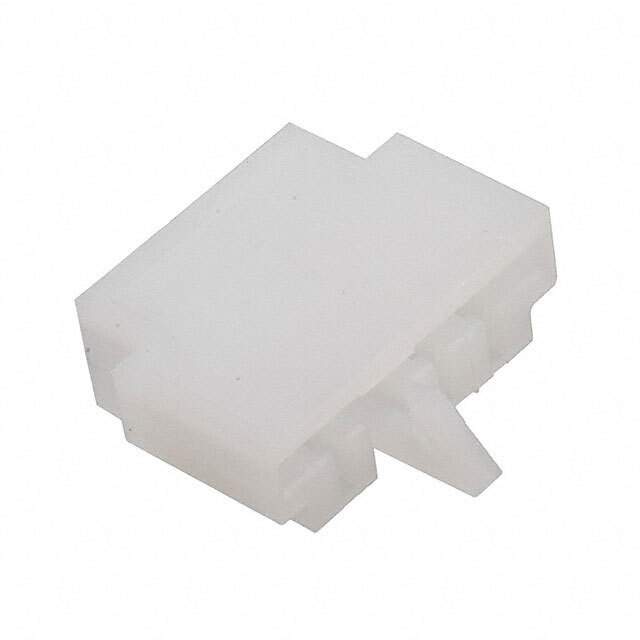

172159-0604 Real Image
Same model may have multiple batches, images only for reference.

172159-0604

Part No 172159-0604
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount White EdgeMate™ Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Card Thickness 1.5748 mm
Case / Package 0604
Color White
Country of Origin US
Depth 7.6 mm
Flammability Rating UL94 V-2
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Nylon
Insulation Material Nylon
Length 26.26 mm
Max Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Cable, Free Hanging
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Packaging Bulk
Pitch 3.96 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Width 16 mm
Win Source Part Number 1185249-172159-0604
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 172159-0604 CAD Model

Description

The Molex 172159-0604 is a card edge connector that comes in a 0604 package.

  • Package: 0604
  • Contacts: 4
  • Rows: 1
  • Pitch: 3.96mm
  • Gender: Female
  • Length: 26.26mm
  • Width: 16mm
  • Housing Material: Nylon
  • Insulation Material: Nylon
  • Card Thickness: 1.5748mm
  • Orientation: Right-Angle
  • RoHS Compliant: Yes
  • Halogen Rating: Low Halogen
  • Approvals: CSA, UL
  • Operating Temperature: 0°C to 75°C
