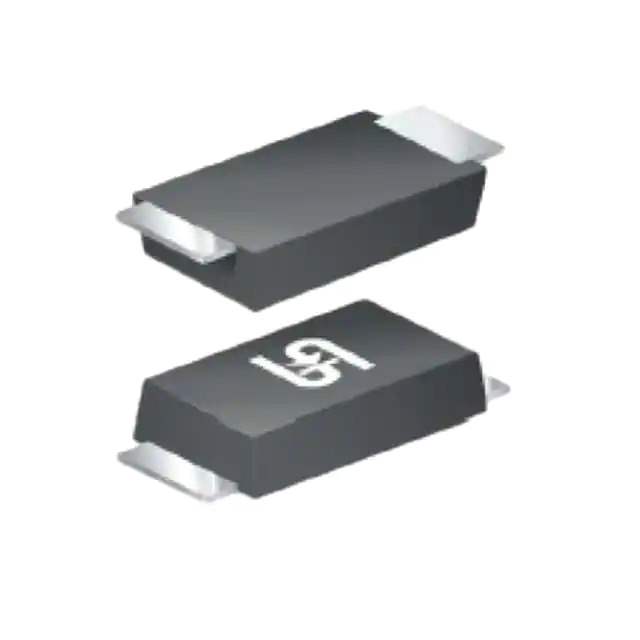

SMF22A Real Image
Same model may have multiple batches, images only for reference.

SMF22A

Part No SMF22A
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC SOD123W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Taiwan Semiconductor
Series SMF
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 5.6A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Base Product Number SMF22
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 669094-SMF22A
Ultra Librarian 3D Model Ultra Librarian SMF22A CAD Model

Description

The 669094-SMF22A is a unidirectional TVS diode from the SMF series in a surface mount SOD-123W package.

  • Series: SMF
  • Type: unidirectional TVS diode
  • Package: surface mount SOD-123W
  • Application: general-purpose transient voltage suppression
  • Reverse Standoff Voltage: 22V
  • Breakdown Voltage: 24.4V
  • Clamping Voltage: 35.5V @ peak pulse power of 200W
  • Peak Pulse Current: 5.6A
  • Response Time: fast
  • Temperature Range: -55°C to 175°C
  • Manufacturer: Taiwan Semiconductor
