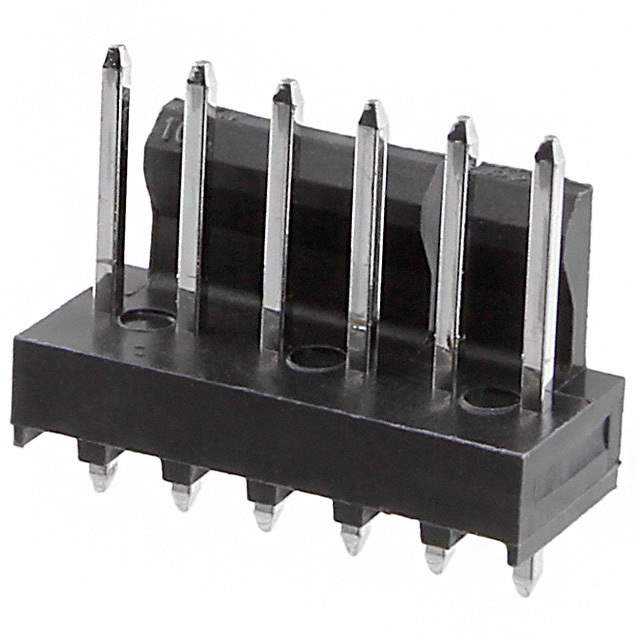

1718560006 Real Image
Same model may have multiple batches, images only for reference.

1718560006

Part No 1718560006
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series KK254, 171856
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.293" (7.45mm)
Contact Length - Post 0.092" (2.34mm)
Overall Contact Length 0.510" (12.95mm)
Insulation Height 0.322" (8.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Black
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 171856
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845990-1718560006
Ultra Librarian 3D Model Ultra Librarian 1718560006 CAD Model

Description

The 787665 is a male pin header connector from Molex, LLC.

  • Series: KK254, 171856
  • Category: Rectangular Connectors - Headers
  • Positions: 6
  • Connector Type: Header
  • Contact Type: Male Pins
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Package: Bulk
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA), Nylon
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
  • Standard Package: 2,000 pieces
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Contact Finish Thickness: 60.0μin (1.52μm)
  • Insulation Color: Black
  • Mounting Type: Through-Hole
  • Shrouding: Shrouded - 1 Wall
  • Contact Shape: Square
  • Contact Length: 0.510" (12.95mm)
  • Insulation Height: 0.322" (8.18mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
