Part No 15-24-6100
Manufacturer Molex, LLC
Catalog Rectangular Connectors

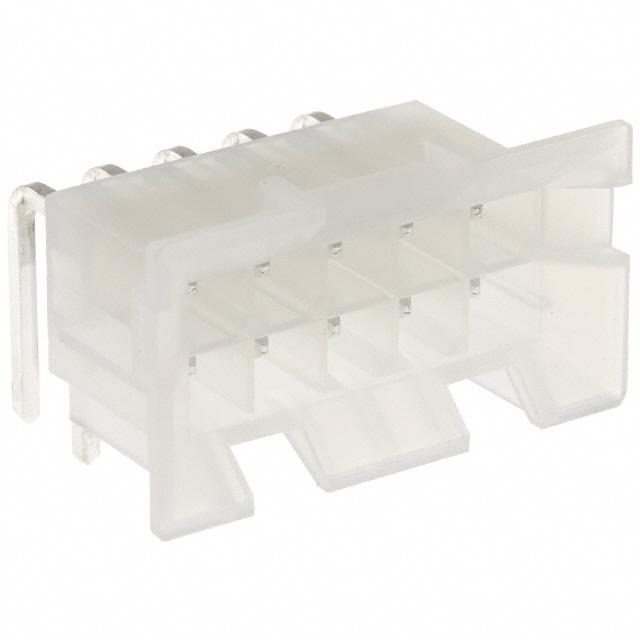

Description CONN HEADER 10POS 4.2MM R/A TIN
Datasheet
15-24-6100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Mini-Fit BMI 42404
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.591" (15.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 760472-15-24-6100
Popularity Medium
Supply and Demand Status Limited
Family Name 42404
Introduction Date June 15, 2010
ECCN EAR99
Country of Origin Brazil, Hong Kong, Mexico, Puerto Rico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 15-24-6100 CAD Model

Description

The Molex Connector Corporation Mini-Fit BMI 42404 series is a board-to-board or cable connector that comes with a 10-position male pin header.

  • Mounting Style: Through Hole, Right Angle
  • Shrouding: Shrouded (4-Wall)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Contact Material: Brass
  • Contact Finish: Tin
  • Material Flammability: UL94 V-2
  • Applications: General Purpose, Industrial, Medical, Telecommunications
  • Pitch: 0.165" (4.20mm)
  • Post Contact Length: 0.130" (3.30mm)
  • Contact Shape: Square
  • Row Spacing: 0.165" (4.20mm)
  • Loaded Positions: All
  • Fastening Type: Latch Holder
  • Packaging: Tray
  • Alternative Parts: 6490 10 29522
  • Estimated EOL Date: 2028
