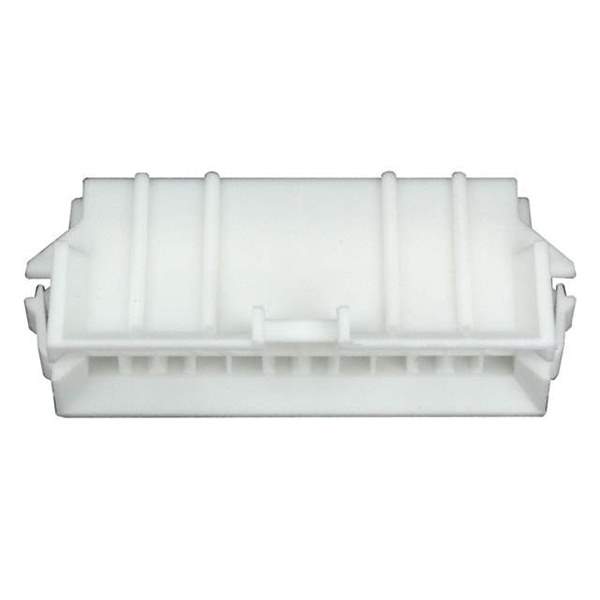

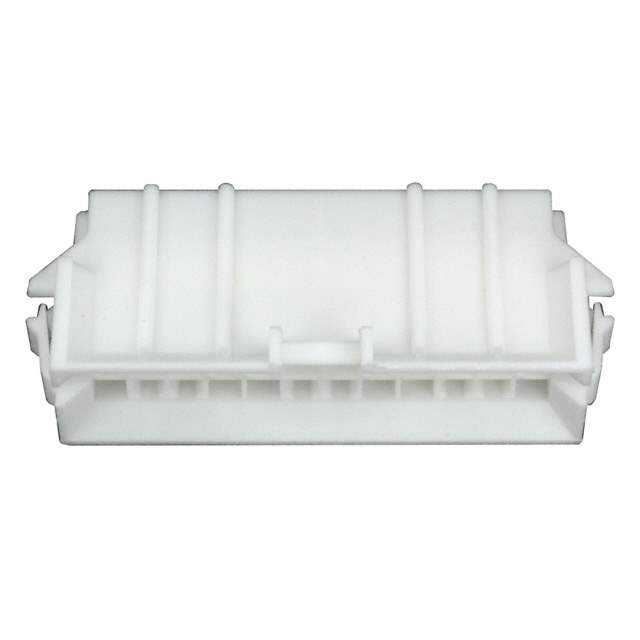

15-06-0246 Real Image
Same model may have multiple batches, images only for reference.

15-06-0246

Part No 15-06-0246
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Connector; Soft Shell; Mini-universal Mate-n-lok; 24 Position; Nylon; White
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin, Plug
Country of Origin US
Current Rating 13 A
Depth 25.6 mm
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Nylon
Length 57.8 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Cable, Panel, Snap in
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 4.2 mm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 4.191 mm
Termination Crimp
Width 16.8 mm
Win Source Part Number 1039108-15-06-0246
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 15-06-0246 CAD Model

Description

The Molex 1039108-15-06-0246 is a male pin, plug connector that has 24 positions and a 4.2mm pitch.

  • Color: Natural
  • Rows: 2
  • Row Spacing: 4.191mm
  • Termination: Crimp
  • Current Rating: 13A
  • Length: 57.8mm
  • Housing Material: Nylon
  • Orientation: Straight
  • Width: 16.8mm
  • Category: OEM parts(0-9)
  • Alternative Parts (Cross-Reference): 770587-1, 39-01-2241, 2-794953-4, 2-1586018-4, 2-1586017-4, 39-01-2246, 35318-24200015060246, 015060246, 15-06-0246.., 15060246, and 42475-2421
  • Country of Origin: US
  • Low Halogen Free: Yes
  • Supply and Demand Status: Shortage
  • Maximum Operating Temperature: 105 °C
  • Mounting: Cable, Panel, Snap-in
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Max Voltage Rating (DC): 600.6 kV
  • REACH SVHC: Unknown
  • Glow Wire Compliant: No
