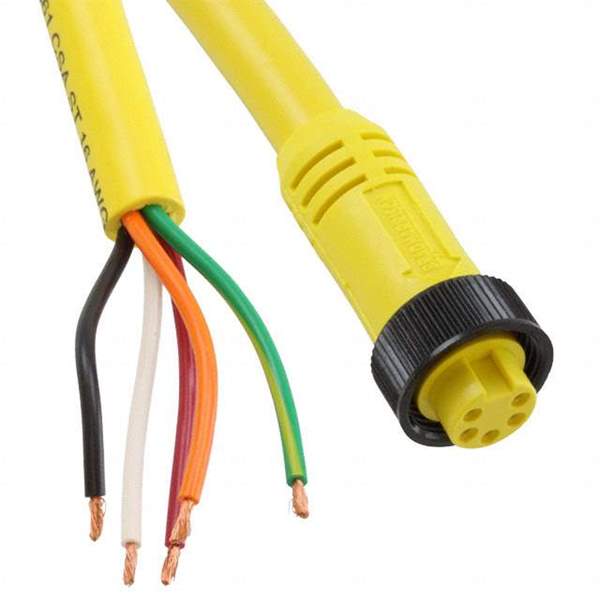

1300061171 Real Image
Same model may have multiple batches, images only for reference.

1300061171

Part No 1300061171
Manufacturer Molex, LLC
Catalog Cables, Wires Fiber Optic Cables
Description Single End Cordset Straight Female Mini Single Keyway 600VAC/DC 8A - 1300061171
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 3.6 m
Color Yellow
Connector Type Circular, Wire Leads
Connector Type A Circular, Receptacle
Connector Type B Connector
Contact Material Brass
Contact Plating Gold
Country of Origin US
Current Rating 8 A
Gender Female
Insulation Color Yellow
Insulation Material PVC
Length 3.6576 m
Mount Cable
Number of Conductors 5
Number of Cores 5
Number of Pins 5
Orientation Straight
Packaging Bulk
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Voltage Rating 600 V
Wire/Cable Gauge 16 AWG
Wire/Cable Type Round
Win Source Part Number 1155379-1300061171
Categories Cables, Wires Fiber Optic Cables
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1300061171 CAD Model

Description

The Molex LLC Circular Connector with Wire Leads is a female connector with a voltage rating of 600 V and a current rating of 8 A.

  • Voltage Rating: 600 V
  • Current Rating: 8 A
  • Conductors: 5
  • Pins: 5
  • Cable Length: 3.6 m
  • Contact Material: Brass
  • Contact Plating: Gold
  • Shielding: Unshielded
  • Orientation: Straight
  • Packaging: Bulk
  • Color: Yellow
  • Insulation Material: PVC
  • Connector Type: Circular with a receptacle
  • Connector Type B: Connector
  • RoHS Compliant: Yes
