Same model may have multiple batches, images only for reference.

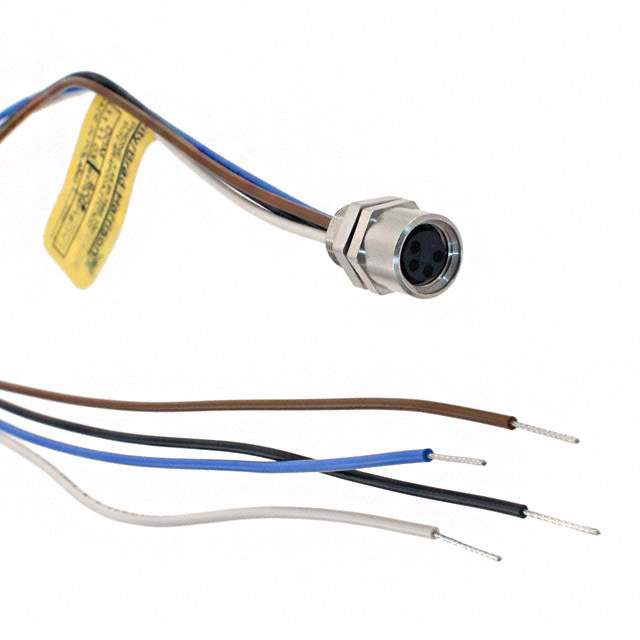

1200900029 Real Image
Same model may have multiple batches, images only for reference.

1200900029

Part No 1200900029
Manufacturer Molex, LLC
Catalog Cables, Wires Fiber Optic Cables
Description Cable Assembly Wire Lead 0.3m 24AWG Circular 4 POS F Nano-Change (M8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 300 mm
Color Multiple
Connector Type Circular, Wire Leads
Connector Type A Circular, Receptacle
Contact Gender Female
Contact Plating Gold
Country of Origin PL
Current Rating 4 A
Gender Female
Housing Material Brass
Length 300 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 60 V
Max Voltage Rating (DC) 75 V
Min Operating Temperature -20 °C
Mount Cable, Front
Number of Contacts 4
Orientation Straight
Radiation Hardening No
Ratings IP67
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Thread Size M8
Voltage Rating 75 V
Voltage Rating (AC) 60 V
Voltage Rating (DC) 75 V
Wire/Cable Gauge 24 AWG
Wire/Cable Type Individual
Win Source Part Number 1125138-1200900029
Categories Cables, Wires Fiber Optic Cables
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1200900029 CAD Model

Description

The Molex circular wire lead connector is a high-quality connector designed for use in various electronic circuits.

  • Type: female connector
  • Termination: crimp termination
  • Voltage Rating: 75V DC
  • Contacts: 4
  • Cable Length: 300mm
  • Shielded: unshielded
  • Housing Material: brass
  • IP Rating: IP67
  • Contact Plating: gold
  • Current Rating: 4A
  • Operating Temperature: -20°C to 105°C
  • RoHS: compliant
  • Suitable for: cables, wires, and fiber optic cables.
