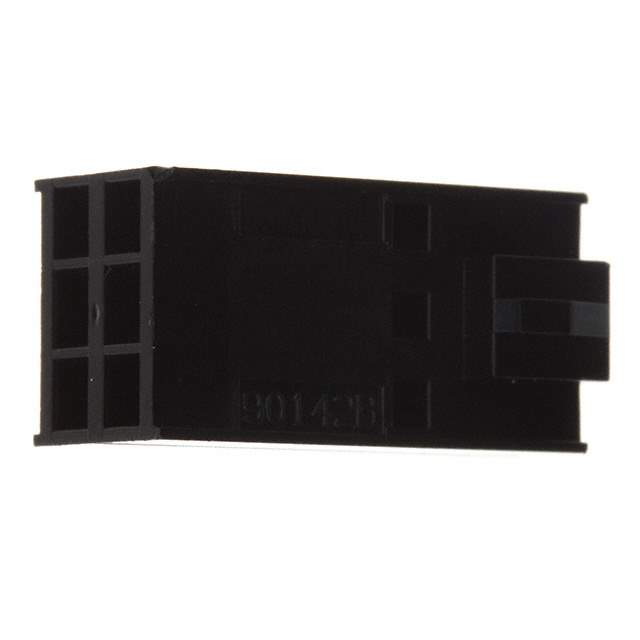

Same model may have multiple batches, images only for reference.

0901420006

Name: 0901420006
Brand: Molex, LLC
SKU: 853439
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0901420006
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 6POS 2.54MM / 6 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Molex, LLC
Series	C-Grid III 90142
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
Color	Black
Temperature Range - Operating	-55°C ~ 105°C
Note	Contacts Not Included
Base Product Number	90142
Standard Package	1 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	853439-0901420006
Ultra Librarian 3D Model	Ultra Librarian 0901420006 CAD Model

Description

The 853439-0901420006 is a rectangular connector housing from Molex, LLC.

Series: C-Grid III 90142
Positions: 6
Pitch: 0.100" (2.54mm)
Color: Black
Features: Locking Ramp
Connector Type: Receptacle
Contact Type: Female Socket
Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting: Free Hanging (In-Line)
Temperature Range: -55°C to 105°C
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8536.69.8000
Product Status: Active
