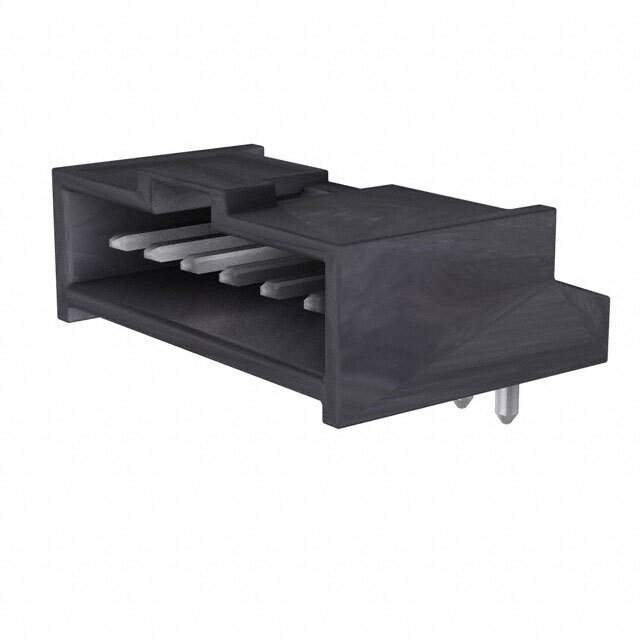

0901362106 Real Image1 0901362106 Real Image2
Same model may have multiple batches, images only for reference.
0901362106 Real Image1 0901362106 Real Image2
0901362106 Real Image1 0901362106 Real Image2
Same model may have multiple batches, images only for reference.

0901362106

Part No 0901362106
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.54MM / Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series C-Grid III 90136
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length -
Insulation Height 0.284" (7.21mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Features -
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose
Base Product Number 90136
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1 pcs
Win Source Part Number 1380420-0901362106
Ultra Librarian 3D Model Ultra Librarian 0901362106 CAD Model

Description

The C-Grid III 90136 series is a versatile header connector designed for use in automotive and general purpose applications from Molex, LLC.

  • Number of Positions: 6
  • Contact Gender: Male Pin
  • Number of Rows: 1
  • Loaded Positions: All
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Contact Finish: Tin
  • Voltage Rating: -
  • Flammability Rating: UL94 V-0
  • Pitch: 0.100" (2.54mm)
  • Contact Length: 0.266" (6.75mm)
  • Mounting Type: Through Hole, Right Angle
  • Shrouded: 4-Wall
  • Package Quantity: 1 pcs
  • Packaging: Tray
