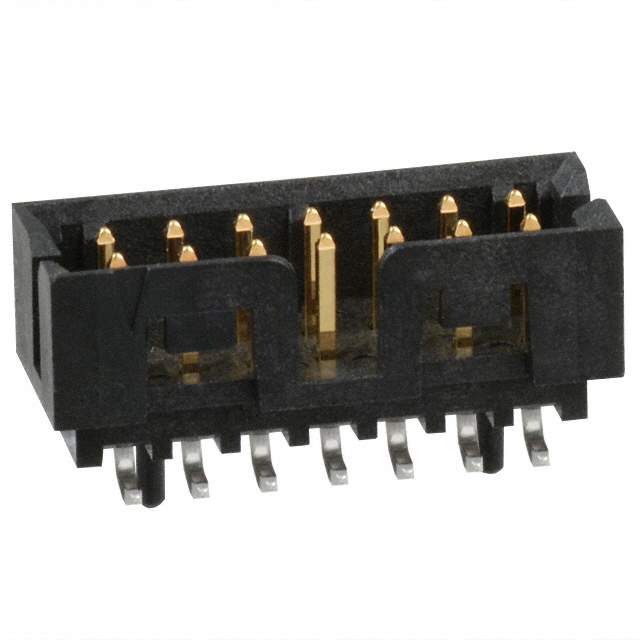

0878321420 Real Image
Same model may have multiple batches, images only for reference.

0878321420

Part No 0878321420
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 2MM / Connector Header Surface Mount 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Milli-Grid 87832
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087832
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 32 pcs
Win Source Part Number 1380415-0878321420
Ultra Librarian 3D Model Ultra Librarian 0878321420 CAD Model

Description

The 1380415-0878321420 is a male pin header connector from Molex, LLC.

  • Series: Milli-Grid 87832
  • Positions: 14
  • Feature: Board guide
  • Rows: Two-row connector
  • Contacts: Male pins
  • Termination: Solder
  • Fastening Type: Latch holder
  • Package: Tube
  • Contact Material: Phosphor bronze
  • Voltage Rating: - (not specified)
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Housing Color: Black
  • Mounting: Surface mount
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold with a thickness of 15.0μin (0.38μm)
  • Standard Package: 32 pieces
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected by REACH
  • HTSUS: 8536.69.4040
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Applications: Automotive, general purpose, and telecommunications
