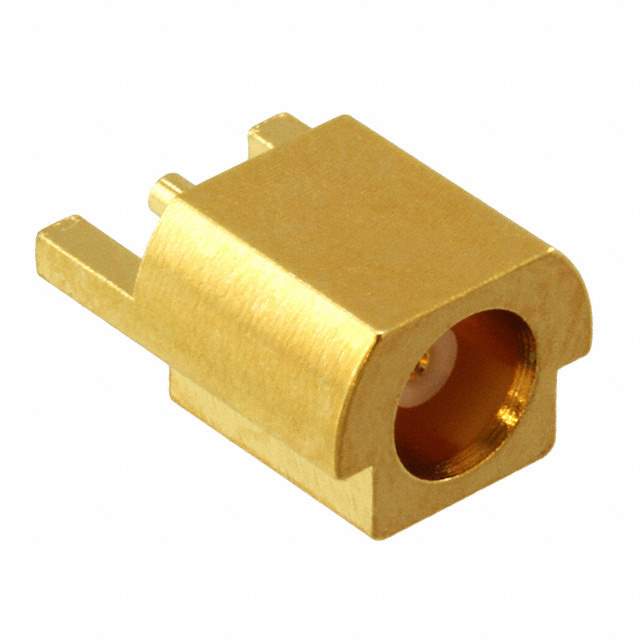

0734151061 Real Image
Same model may have multiple batches, images only for reference.

0734151061

Part No 0734151061
Manufacturer Molex, LLC
Catalog Coaxial Connectors (RF)
Description 50 Ohms, MCX Jack, Edge Mount PCB Receptacle, | CONN MCX RCPT STR 50OHM EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Cut Tape (CT)
Connector Style MCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style Board Edge, Cutout; Surface Mount
Fastening Type Snap-On
Frequency - Max 6GHz
Number of Ports 1
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120750-0734151061
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0734151061 CAD Model

Description

The Molex 1120750-0734151061 is a female socket receptacle connector with a snap-on fastening type and a solder contact termination.

  • Connector Type: MCX
  • Voltage Rating: 335V
  • Frequency Range: Up to 6GHz
  • Housing Color: Gold
  • Impedance: 50Ohm
  • Body Material: Brass with a gold finish
  • Center Contact Material: Beryllium copper with a gold plating
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Operating Temperature Range: -55°C to 155°C
