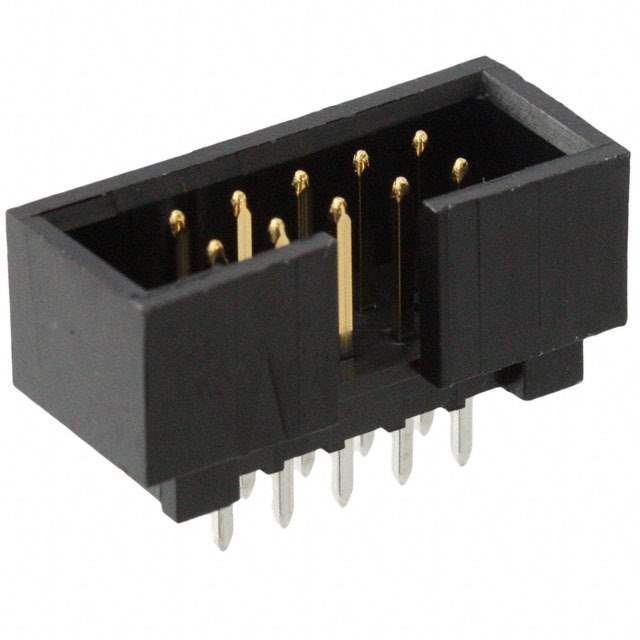

Same model may have multiple batches, images only for reference.
0702461004 Molex
Same model may have multiple batches, images only for reference.

0702461004

Part No 0702461004
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207229-0702461004
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series C-Grid 70246
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 0702461004 CAD Model

Description

Connector Header Through Hole 10 position 0.100" (2.54mm)
