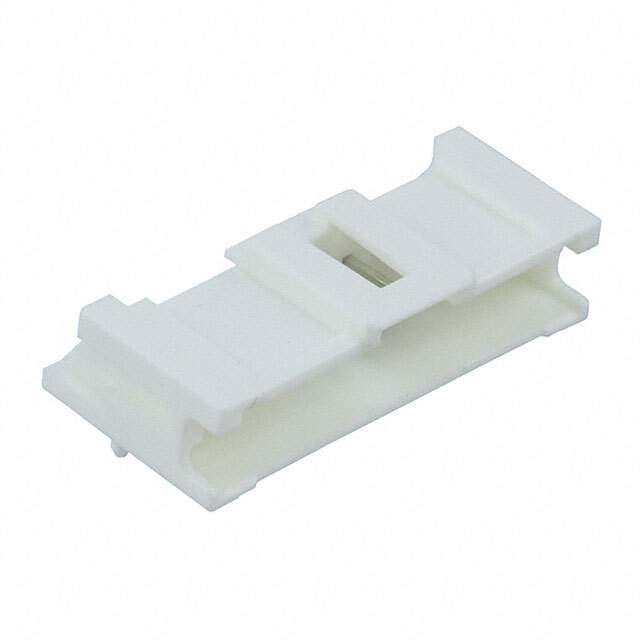

0559351010 Real Image
Same model may have multiple batches, images only for reference.

0559351010

Part No 0559351010
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2MM / Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series MicroClasp 55935
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.144" (3.66mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.264" (6.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Natural
Applications General Purpose, Industrial, Medical
Base Product Number 055935
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856574-0559351010
Ultra Librarian 3D Model Ultra Librarian 0559351010 CAD Model

Description

The MicroClasp 55935 rectangular connector header, part number 856574-0559351010, is a reliable component for electrical connections and is manufactured by Molex.

  • Positions: 10
  • Pitch: 0.079 inches (2.00mm)
  • Contact Type: Male Pin
  • Termination: Kinked Pin and Solder
  • Fastening Type: Latch Holder
  • Mounting Type: Through-Hole, Right-Angle
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Applications: General Purpose, Industrial, and Medical
  • Product Status: Active
  • Standard Package: 300 pieces
