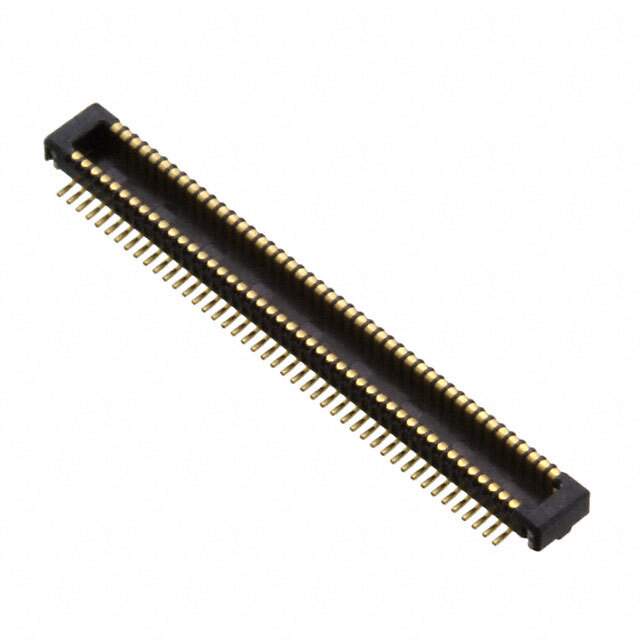

0559090974 Real Image
Same model may have multiple batches, images only for reference.

0559090974

Part No 0559090974
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 90POS SMD GOLD / 90 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 55909
Package Tape & Reel
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 90
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 1.5mm
Height Above Board 0.045" (1.14mm)
Base Product Number 055909
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856568-0559090974
Ultra Librarian 3D Model Ultra Librarian 0559090974 CAD Model

Description

The 856568-0559090974 is a rectangular connector array from Molex's SlimStack 55909 series.

  • Positions: 90
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Connector Type: Plug
  • Contact Type: Outer Shroud
  • Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Package: Tape & Reel
  • Mated Stacking Height: 1.5mm
  • Height Above Board: 0.045" (1.14mm)
  • Mounting Type: Surface Mount
  • Product Status: Active
  • Standard Package: 2,500 pieces
