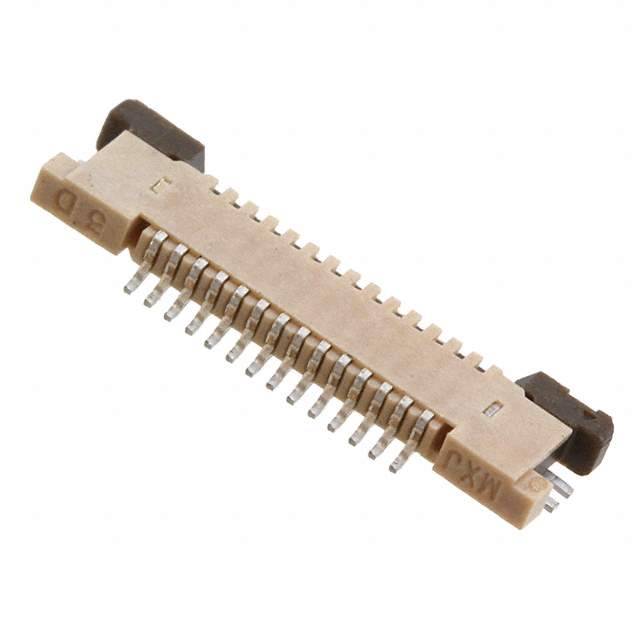

0545501471 Real Image
Same model may have multiple batches, images only for reference.

0545501471

Part No 0545501471
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC TOP 14POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 21 Weeks
Features 14 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Molex, LLC
Series Easy-On 54550
Package Reel - TR
Operating Temperature Range -20°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 054550
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 545501471, 54550-1471, 054550-1471, 54550-1471-TR750, WM8817DKR, WM8817TR, WM8817CT
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907370-0545501471
Ultra Librarian 3D Model Ultra Librarian 0545501471 CAD Model

Description

The Molex Easy-On 54550 series is a 14-position FFC, FPC connector that features top 0.020" (0.50mm) surface mount and right angle contacts.

  • Operating Temperature: -20°C to 85°C
  • Package: Reel - TR
  • Mounting: Surface Mount, Right Angle
  • Family Name: 054550
  • Category: Connectors
  • Supply and Demand Status: Balanced
  • Quantity per Package: 3000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 21 weeks
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4051
  • Other Part Numbers: 545501471, 54550-1471, 054550-1471, 54550-1471-TR750, WM8817DKR, WM8817TR, WM8817CT
