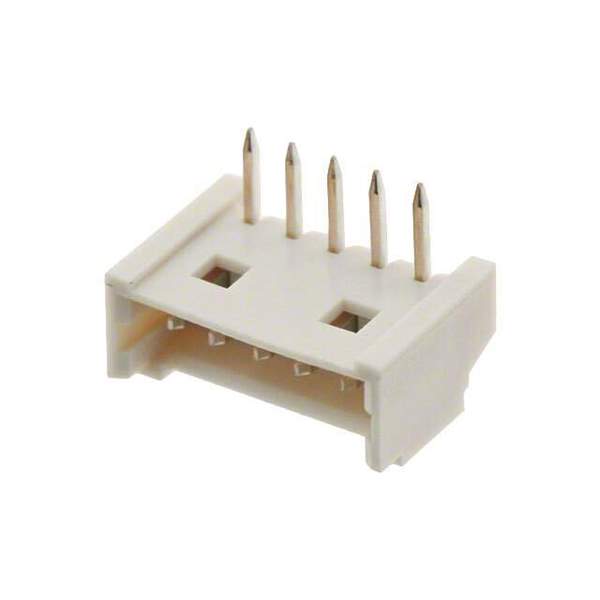

0530480510 Molex
Same model may have multiple batches, images only for reference.

0530480510

Part No 0530480510
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207072-0530480510
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series PicoBlade 53048
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 0530480510 CAD Model

Description

Connector Header Through Hole, Right Angle 5 position 0.049" (1.25mm)
