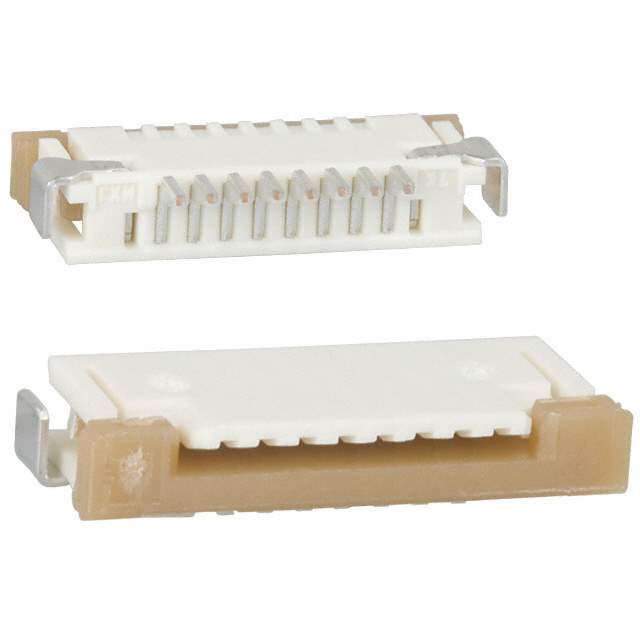

0522070885 Real Image
Same model may have multiple batches, images only for reference.

0522070885

Part No 0522070885
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC FPC TOP 8POS 1.00MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 8 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Manufacturer Molex, LLC
Series Easy-On 52207
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 052207
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number WM7677TR, 052207-0885, 522070885, 522070885-C, 0522070885-C, 52207-0885, WM7677CT, 52207-0885-C, 052207-0885-C, WM7677DKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907211-0522070885
Ultra Librarian 3D Model Ultra Librarian 0522070885 CAD Model

Description

The Molex Easy-On 52207 series is an 8 position FFC, FPC connector contacts that are top surface mount with a pitch of 0.039 inches (1.00mm).

  • Series: Easy-On 52207
  • Positions: 8
  • Connector Type: FFC, FPC Connector Contacts
  • Mounting: Top Surface Mount
  • Pitch: 0.039 inches (1.00mm)
  • Status: Discontinued
  • Application: Connector
  • Operating Temperature: -30°C to 85°C
  • Package: Reel - TR
  • Mounting Style: Surface Mount, Right Angle
  • Supply and Demand: Balanced
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4051
  • Other Part Numbers: WM7677TR, 052207-0885, 522070885, 522070885-C, 0522070885-C, 52207-0885, WM7677CT, 52207-0885-C, 052207-0885-C, WM7677DKR
