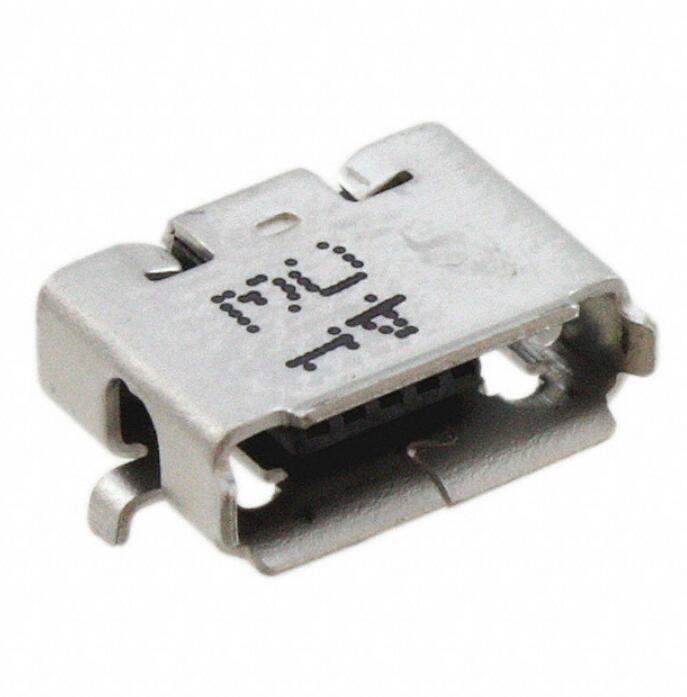

0475900001Molex
Same model may have multiple batches, images only for reference.

0475900001

Part No 0475900001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT MICRO USB AB 5P SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203282-0475900001
Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Series 47590
Product Status Active
Connector Type USB - micro AB
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Ultra Librarian 3D Model Ultra Librarian 0475900001 CAD Model

Description

USB - micro AB Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
