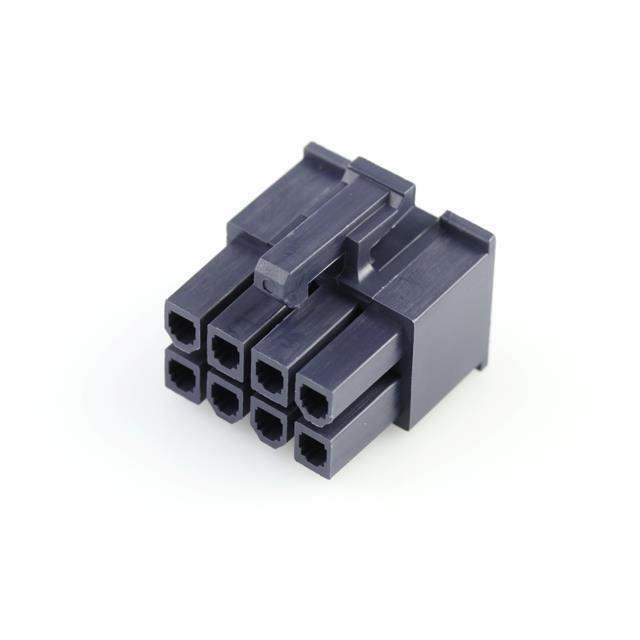

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206772-0469920810
Manufacturer Molex
Category Connectors, Interconnects-Rectangular Connectors- Rectangular Connector Housings
Series Mini-Fit Jr 46992
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.165" (4.20mm)
Row Spacing 0.165" (4.20mm)
Ultra Librarian 3D Model Ultra Librarian 0469920810 CAD Model

Description

8 Rectangular Connectors - Housings Receptacle Black 0.165" (4.20mm)
