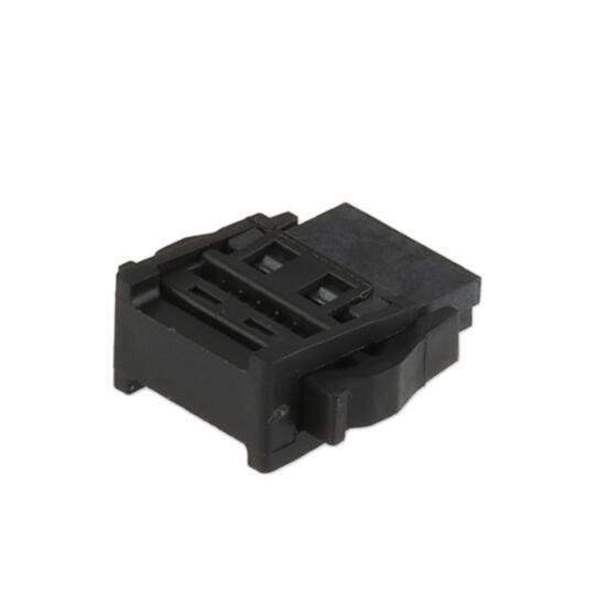

15290122502000 HARTING
Same model may have multiple batches, images only for reference.

15290122502000

Part No 15290122502000
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN RCPT 12POS IDC 30AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer HARTING
Category Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Series har-flex®
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 12
Pitch 0.050" (1.27mm)
Number of Rows 2
Row Spacing 0.050" (1.27mm)
Mounting Type Free Hanging (In-Line)
Win Source Part Number WS1206043-15290122502000
Ultra Librarian 3D Model Ultra Librarian 15290122502000 CAD Model

Description

12 Position Rectangular Receptacle Connector IDC 30 AWG
