Same model may have multiple batches, images only for reference.

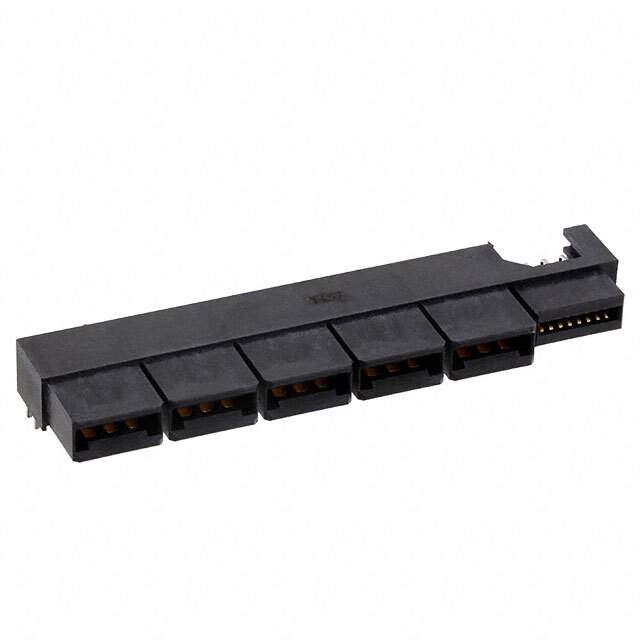

0459840007 Real Image
Same model may have multiple batches, images only for reference.

0459840007

Part No 0459840007
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description CONN RCPT LPHPOWER 26POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 6 Weeks
Features 26 Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Black LPHPower
Manufacturer Molex, LLC
Series EXTreme LPHPower 45984
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 045984
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0459-84-0007, 459840007, 45984-0007, 045984-0007, WM16256, 0459840007-ND
Quantity per package 80
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906909-0459840007
Ultra Librarian 3D Model Ultra Librarian 0459840007 CAD Model

Description

The EXTreme LPHPower 45984 series connector receptacle from Molex, LLC is a high-quality product that is designed to provide reliable and secure connections for a wide range of electronic devices.

  • Connector Type: Connector Receptacle
  • Contacts: Outer Shroud Contacts
  • Mounting Type: Through Hole, Right Angle
  • Color: Black LPHPower
  • Packaging: Tray
  • Operating Temperature Range: -40°C ~ 105°C
  • Family Name: 045984
  • Category: Connectors
  • ECCN: EAR99
  • Popularity: High
  • Supply and Demand Status: Balance
  • Quantity per Package: 80
  • Estimated Production Lead Time: 6 weeks
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 0459-84-0007, 459840007, 45984-0007, 045984-0007, WM16256, 0459840007-ND
