Part No 0430452001
Manufacturer Molex, LLC
Catalog Rectangular Connectors

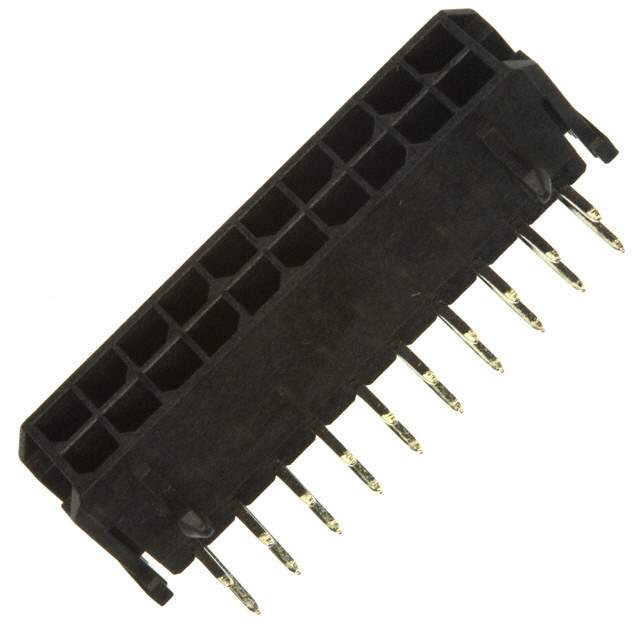

Description CONN HEADER R/A 20POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 43045
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 043045
Standard Package 648 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856035-0430452001
Ultra Librarian 3D Model Ultra Librarian 0430452001 CAD Model

Description

The 856035-0430452001 is a male pin header connector from Molex's Micro-Fit 3.0 43045 series.

  • Positions: 20
  • Features: Board Lock
  • Mounting: Through-Hole, Right-Angle
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass Alloy
  • Contact Finish: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Voltage Rating: 600V
  • Applications: Automotive, General Purpose, Industrial, Medical, and Telecommunications
  • Package: Tray
  • Standard Package Quantity: 648 pcs
