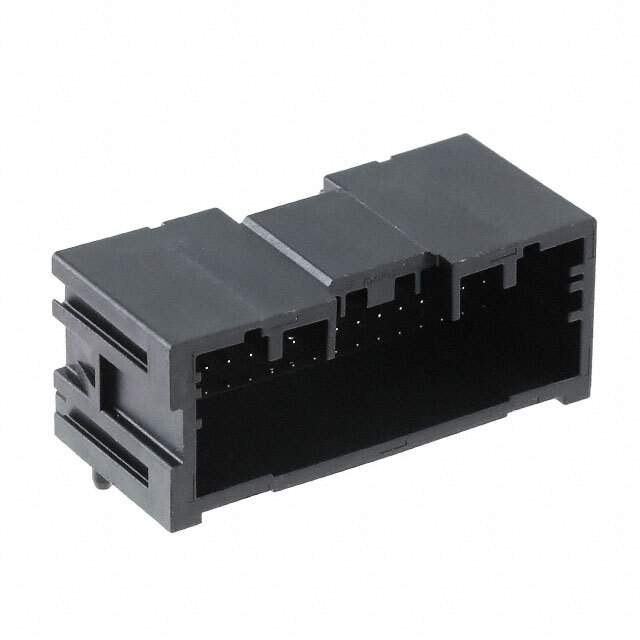

0349610340 Real Image
Same model may have multiple batches, images only for reference.

0349610340

Part No 0349610340
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Mini50 34961
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Blade
Number of Positions 34
Number of Rows 3
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.108" (2.75mm)
Insulation Height 0.654" (16.61mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Insulation Color Black
Applications Automotive
Base Product Number 034961
Standard Package 704 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855775-0349610340
Ultra Librarian 3D Model Ultra Librarian 0349610340 CAD Model

Description

The Mini50 34961 is a header-type male pin connector designed for board-to-cable or board-to-wire connections.

  • Connector Type: Header
  • Pin Gender: Male
  • Positions: 34
  • Fastening Type: Latch Lock
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Application: Automotive
  • Standard Package: 704 pcs
  • Shrouded: Yes, 4 Walls
  • Mounting Options: Through Hole or Right Angle
  • Series: Mini50
  • Manufacturer: Molex, LLC
  • Product Status: Obsolete
