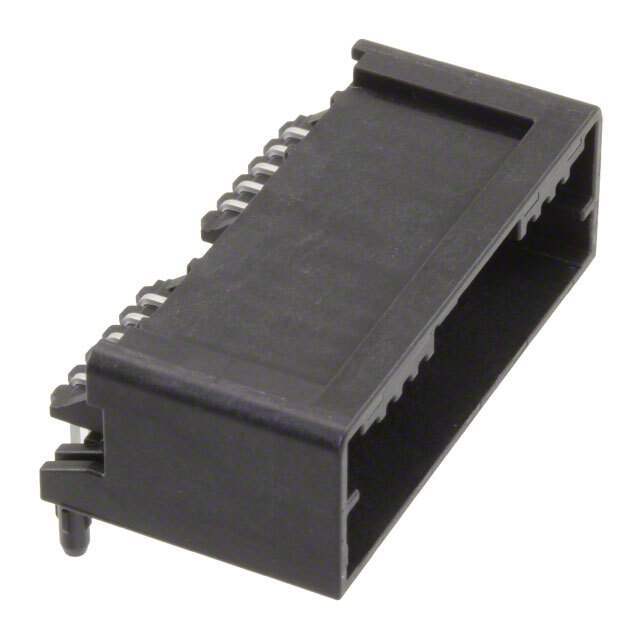

0348260240 Molex
Same model may have multiple batches, images only for reference.

0348260240

Part No 0348260240
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 2MM
Datasheet
0348260240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 0348260240 CAD Model

Description

Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
