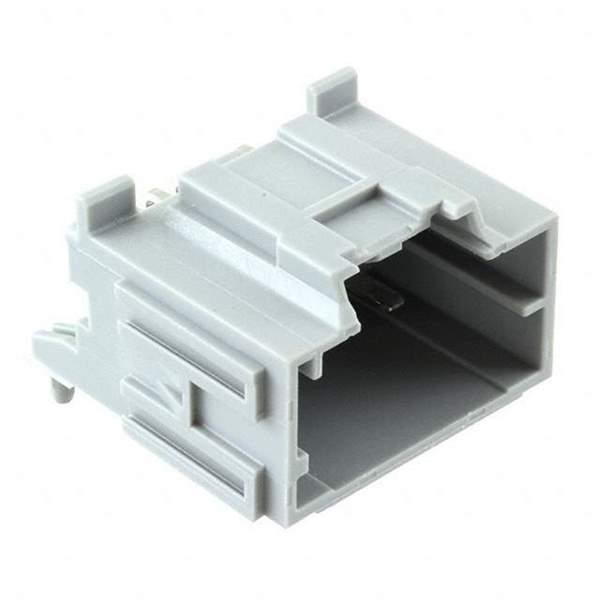

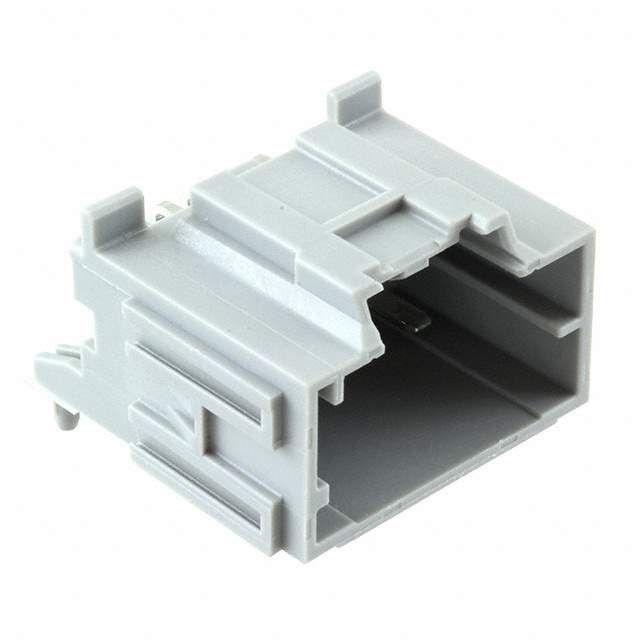

0346960101 Real Image
Same model may have multiple batches, images only for reference.

0346960101

Part No 0346960101
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS / Connector Header Through Hole, Right Angle 10 (6 + 4 Power) position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Stac64 34696
Package Tray
Connector Type Header
Contact Type Male Blade; Male Pin
Pitch - Mating -
Number of Positions 10 (6 + 4 Power)
Number of Rows 2
Row Spacing - Mating 0.248" (6.30mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length -
Insulation Height 0.868" (22.05mm)
Contact Shape Rectangular, Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 100°C
Ingress Protection -
Material Flammability Rating -
Insulation Color Gray
Current Rating (Amps) -
Voltage Rating 500V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 034696
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 560 pcs
Win Source Part Number 1380771-0346960101
Ultra Librarian 3D Model Ultra Librarian 0346960101 CAD Model

Description

The Stac64 34696 is a high-quality rectangular connector header designed for male pins.

  • Feature: Board Guide
  • Connector Type: Header for Male Blade and Male Pin
  • Positions: 10 (6 Signal, 4 Power)
  • Fastening: Latch Holder
  • Contact Material: Copper Alloy
  • Voltage Rating: 500V
  • Insulation Material: Syndiotactic Polystyrene (SPS), Glass-Filled
  • Mounting: Through Hole, Right Angle
  • Design: Shrouded 4-Wall
  • Row Spacing (Mating): 0.248" (6.30mm)
  • Operating Temperature: -40°C to 100°C
  • Manufacturer: Molex
