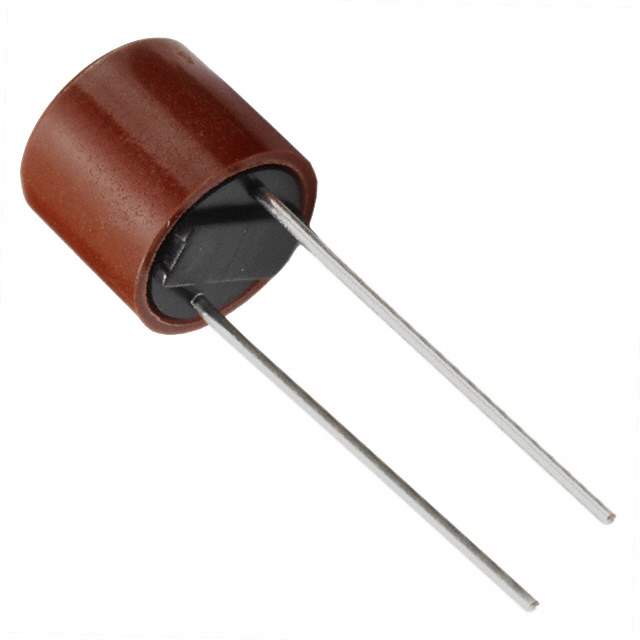

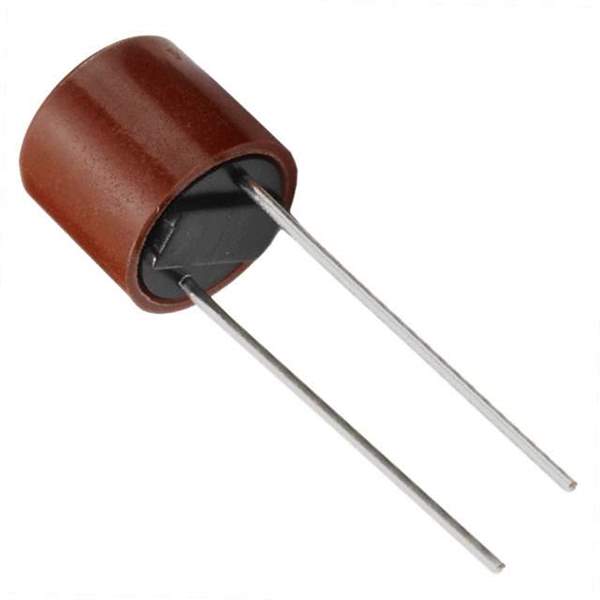

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial, Can, Vertical
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A
Melting I2t 4.85
Approvals CCC, cURus, KC, PSE/JET, SEMKO, VDE
Temperature Range - Operating -40°C ~ 85°C
Parts Dimension 0.335" Dia x 0.315" H (8.50mm x 8.00mm)
DC Cold Resistance 0.0625 Ohms
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1128329-38211000000
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 38211000000 CAD Model

Description

The Littelfuse Inc. 480138 is a slow-blow board mount fuse that is ideal for circuit protection.

  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • DC Cold Resistance: 0.0625 Ohms
  • Package: radial, can, vertical
  • Packaging: cut tape packaging
  • Response Time: slow-blow
  • Melting I2t: 4.85
  • Approvals: CCC, cURus, KC, PSE/JET, SEMKO, VDE
  • Temperature Range: -40°C to 85°C
  • Parts Dimension: 0.335" Dia x 0.315" H (8.50mm x 8.00mm)
